The 74F245 is an octal transceiver from Philips with non-inverting 3-State bus compatible outputs that can be used for both transmit and receive. The B port outputs are capable of sinking 64mA and sourcing 15mA.

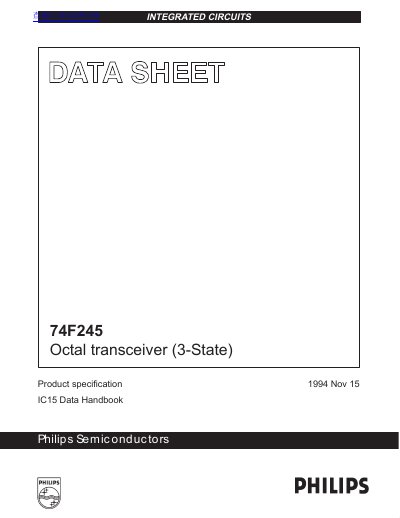

This document is a product specification datasheet for the Philips 74F245, an octal transceiver with non-inverting 3-State bus compatible outputs. The device features bidirectional data transfer capabilities between two buses (A and B) with independent control for direction and output enable.
| Propagation Delay | 4.0ns |
|---|---|
| Output Enable Input | Active Low |
| Operating Temperature Range | 0 to +70 °C |
The OE input is an Output Enable input that is active Low.
The operating free-air temperature range is 0 to +70 °C.
