74F06, 74F06A, 74F07, 74F07A are 6-channel open-collector output buffers produced by Philips Semiconductors.

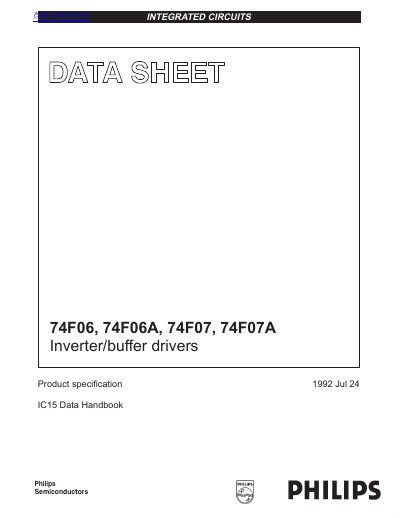

This document is a product specification datasheet for the Philips 74F06, 74F06A, 74F07, and 74F07A series of hex inverter/buffer drivers featuring open-collector outputs. It provides detailed electrical characteristics, including propagation delays, supply currents, and input/output loading capabilities for both standard and high-speed variants.
| Supply Voltage (Voc) | 0.5 to +7.0 V |
|---|---|
| Operating Temperature | 0 to +70 °C |
| Propagation Delay (74F06) | 3.5ns typical |
| Output Termination Voltage (74F06A) | 42V |
| Package Type | 14-pin plastic Dual In-line Package |
The typical propagation delay for the 74F06 is 3.5ns.
The maximum output termination voltage for the 74F06A is 42V.
The operating free air temperature range is 0 to +70 °C.
