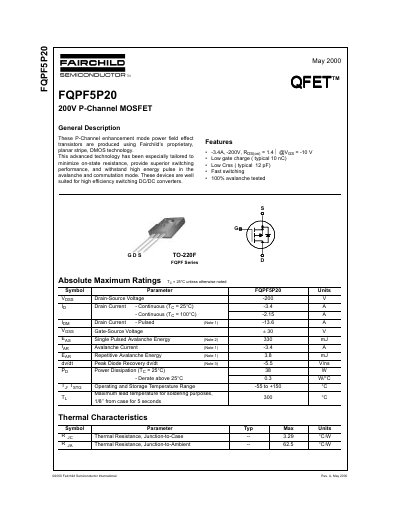

Fairchild FQPF5P20 200V P-Channel MOSFET Datasheet
Datasheet 8 pages · 610 KB · ZH
The document is a datasheet for the Fairchild FQPF5P20, a 200V P-Channel enhancement mode power field effect transistor. It utilizes Fairchild's proprietary planar stripe DMOS technology to minimize on-state resistance and provide superior switching performance. The device is designed for high efficiency switching DC/DC converters. This manual is written in Chinese.
Read onlineFairchild FQPF5P20 specifications
| Drain-Source Voltage | -200 V |
|---|---|
| Continuous Drain Current (25°C) | -3.4 A |
| Static Drain-Source On-Resistance | 1.4 ℧ |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | TO-220F |
All Fairchild FQPF5P20 documents by type
Datasheet 3
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current?
The device can handle a continuous drain current of 3.4 A at 25 °C (2.15 A at 100 °C).
In which package is the FQPF5P20 supplied?
It is supplied in a TO‑220F package.
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of -200 V.
What continuous drain current can the FQPF5P20 handle at 25 °C?
It can conduct up to -3.4 A continuously at a case temperature of 25 °C.
