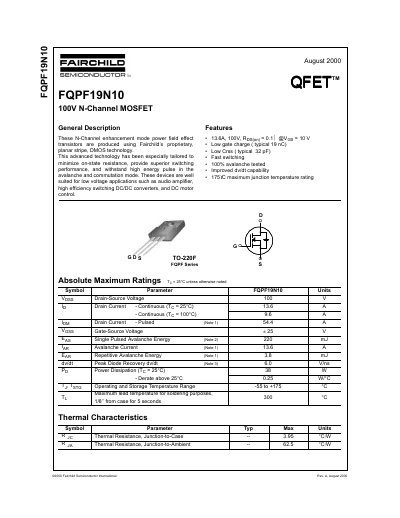

Fairchild FQPF19N10 100V N-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild FQPF19N10, a 100V N-Channel enhancement mode power field effect transistor. The device utilizes Fairchild's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. It is well-suited for low voltage applications such as audio amplifiers, high efficiency switching DC/DC converters, and DC motor control.
Read onlineFairchild FQPF19N10 specifications
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 13.6 A |
| Continuous Drain Current (Tj = 100°C) | 9.6 A |
| Pulsed Drain Current | 54.4 A |
| Gate-Source Voltage | +25 V |
| Single Pulsed Avalanche Energy | 220 mJ |
| Power Dissipation (Tj = 25°C) | 38 W |
| Operating and Storage Temperature Range | -55 to +175 °C |
| Thermal Resistance, Junction-to-Case | 3.95 °C/W |
| Thermal Resistance, Junction-to-Ambient | 62.5 °C/W |
| On-Resistance | 0.12 Ohm |
| Package Type | TO-220F |
All Fairchild FQPF19N10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What applications is the FQPF19N10 suited for?
The device is well suited for low voltage applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control.
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
What is the maximum continuous drain current?
The device can conduct 13.6 A continuously at 25 °C and 9.6 A at 100 °C.
What is the pulsed drain current rating?
It can handle a pulsed drain current of up to 54.4 A.
What is the maximum drain‑source voltage of the FQPF19N10?
The device is rated for a maximum drain‑source voltage of 100 V.
What is the continuous drain current at 25 °C?
The continuous drain current is 13.6 A at a junction temperature of 25 °C.
