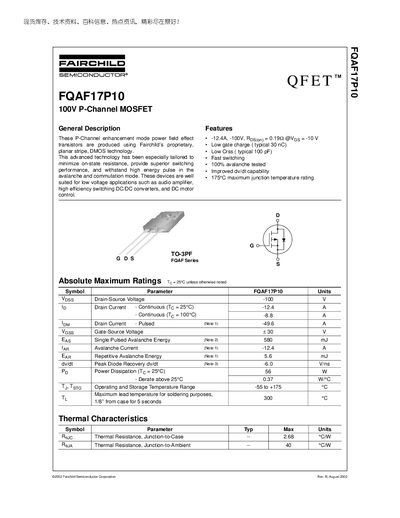

Fairchild FQAF17P10 P-Channel MOSFET Datasheet
The FQAF17P10 is a P‑Channel enhancement‑mode power MOSFET built with Fairchild’s planar stripe DMOS technology. It is optimized for low on‑state resistance, fast switching, and high‑energy pulse capability, making it suitable for audio amplifiers, high‑efficiency DC‑DC converters, and DC motor control.
Key specifications include a -100 V drain‑source rating, -12.4 A continuous drain current at 25 °C, -49.6 A pulsed current, typical on‑resistance of 0.192 Ω at Vgs = ‑10 V, and a maximum junction temperature of 175 °C. The device is supplied in a TO‑3PF package with thermal resistance RθJC of 2.68 °C/W.
Fairchild FQAF17P10 specifications
| Drain‑Source Voltage (VDS) | -100 V |
|---|---|
| Continuous Drain Current (ID) at 25 °C | -12.4 A |
| Pulsed Drain Current (ID,pulse) | -49.6 A |
| Gate‑Source Voltage (VGS) | +30 V |
| On‑Resistance (RDS(on)) typical | 0.192 Ω @ VGS = -10 V |
| Typical Gate Charge (Qg) | 30 nC |
| Reverse Transfer Capacitance (Crss) typical | 100 pF |
| Maximum Junction Temperature (Tj) | 175 °C |
| Thermal Resistance Junction‑to‑Case (RθJC) | 2.68 °C/W |
| Package | TO‑3PF |
