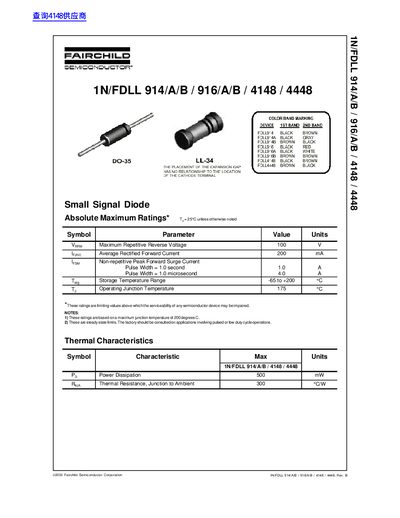

Fairchild Semiconductor 1N/FDLL 914/A/B 916/A/B 4148 4448 Small Signal Diode Datasheet
This document details the electrical and thermal characteristics of the 1N/FDLL 914/A/B, 916/A/B, 4148, and 4448 small signal diodes. It lists absolute maximum ratings such as a maximum repetitive reverse voltage of 100 V and an average rectified forward current of 200 mA. The document also specifies a non-repetitive peak forward surge current of 1.0 A for a 1.0 second pulse width and 4.0 A for a 1.0 microsecond pulse width.
Read onlineFairchild FDLL 914 specifications
| Maximum Repetitive Reverse Voltage | 100 V |
|---|---|
| Average Rectified Forward Current | 200 mA |
| Operating Junction Temperature | 175 °C |
| Power Dissipation | 500 mW |
| Thermal Resistance, Junction to Ambient | 300 °C/W |
| Storage Temperature Range | -65 to +200 °C |
Source: Fairchild Semiconductor 1N/FDLL 914/A/B 916/A/B 4148 4448 Small Signal Diode Datasheet
