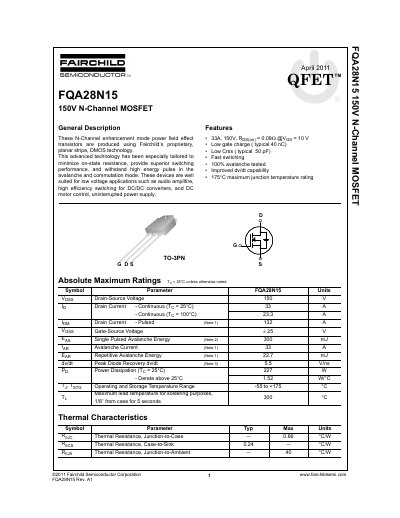

Fairchild Semiconductor FQA28N15 150V N-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FQA28N15, an N-Channel enhancement mode power field effect transistor. The device utilizes proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. It is well-suited for applications such as audio amplifiers, high efficiency switching for DC/DC converters, and DC motor control.
Read onlineFairchild FQA28N15 specifications
| Drain-Source Voltage | 150 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 33 A |
| Maximum Junction Temperature | 175°C |
| Package Type | TO-3PN |
| On-Resistance (Typical) | 0.092 Ohms |
| Gate Charge (Typical) | 40 nC |
Source: Fairchild Semiconductor FQA28N15 150V N-Channel MOSFET Datasheet
All Fairchild FQA28N15 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
From: Fairchild Semiconductor FQA28N15 150V N-Channel MOSFET Datasheet
What is the maximum drain-source voltage?
The maximum drain-source voltage is 150 V.
From: Fairchild Semiconductor FQA28N15 150V N-Channel MOSFET Datasheet
What is the maximum continuous drain current at 25 °C?
The device can handle a continuous drain current of 33 A at 25 °C.
What is the typical gate charge of the FQA28N15?
The typical gate charge is 40 nC.
