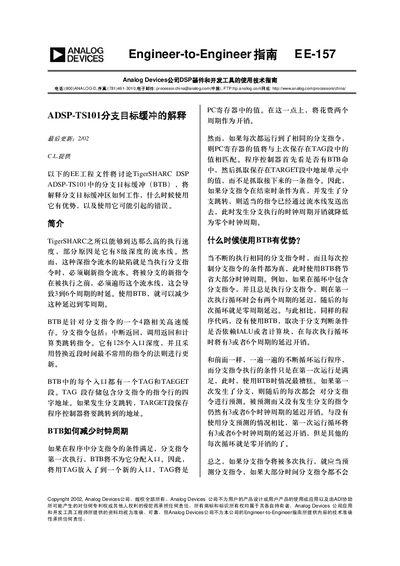

Analog Devices ADSP-TS101 Branch Target Buffer Guide

Analog Devices ADSP-TS101 Branch Target Buffer Guide

Application Note 3 pages · 286 KB · EN

This Engineer-to-Engineer guide discusses the Branch Target Buffer (BTB) in the TigerSHARC DSP ADSP-TS101. It explains how the BTB works, when it provides advantages, and potential errors that may occur. The guide covers the operation of the BTB, which is a 4-way set-associative cache for branch instructions, and provides guidance on optimizing performance by avoiding conflicts in the BTB.

The document details how the BTB reduces clock cycle delays when executing branch instructions, specifically noting that it can reduce delay to zero cycles if the branch condition is true repeatedly. It also provides specific instructions on how to avoid compiler warnings regarding two branch instructions within the same 4-word memory space, including the use of the 'NP' suffix to force non-prediction.

Read online

Analog Devices ADSP-TS101 specifications

Pipeline Depth8 stages
BTB Associativity4-way set-associative
BTB Entry Depth128 entries
BTB Replacement PolicyLeast Recently Used
BTB TAG Storage4-word address

Source: Analog Devices ADSP-TS101 Branch Target Buffer Guide
