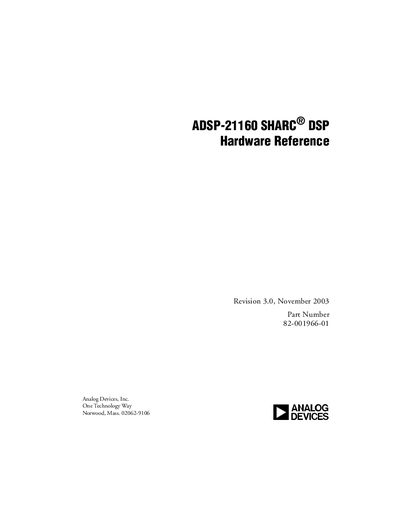

Analog Devices ADSP-21160 Hardware Reference Manual
This hardware reference manual introduces the ADSP-21160 SHARC DSP, describing its floating‑point and fixed‑point formats, processor core, and internal buses. It also outlines the development tools, enhancements over previous SHARC devices, and the overall architecture.
The document includes extensive sections on processing elements, ALU operations, instruction sequencing, cache usage, branching, data address generators, memory organization, and vector interrupt handling, giving designers the technical details needed to implement and debug applications on the ADSP-21160.
Analog Devices ADSP-21160 specifications
| Number of link ports | six 8-bit wide link ports |
|---|---|
| Data lines | eight data lines (LxDAT7-0) |
| Maximum transfer rate | 80 MHz |
| Transmission line impedance | 50 Ohm or greater |
All Analog Devices ADSP-21160 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Analog Devices ADSP-21160 EZ-KIT Lite Evaluation System Manual 74 p
- Analog Devices ADSP-21160 EZ-KIT Lite Evaluation System Manual 66 p
- Analog Devices ADSP-21160 EZ-KIT Lite Evaluation System Manual 93 p
- Analog Devices ADSP-21160 EZ-KIT Lite Evaluation System Manual 81 p
- Analog Devices ADSP-21160 SHARC DSP Hardware Reference Manual 824 p
- Analog Devices ADSP-21160 Hardware Reference Manual 832 p
How to use the product for one specific task, with worked examples.
- Analog Devices EE-148 Introduction to SHARC Multiprocessor Systems Using VisualDSP++ 13 p
- ANALOG DEVICES EE-160 Examining ADSP-21160 Link Port Backward Compatibility to the ADSP-2106x Link Ports Manual 11 p
- EE-140 Using the ADSP-21160 Serial Ports in Multi-channel Mode 7 p
- Analog Devices ADSP-21160 SHARC Processors Implementing Overlays EE-284 8 p
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What is the minimum number of processors required in a DSP multiprocessor system?
A DSP with ID=001 must be present in the system to drive the external bus control lines stable during reset.
From: Analog Devices EE-148 Introduction to SHARC Multiprocessor Systems Using VisualDSP++
What is the maximum number of ADSP-21160 processors that can be declared in one LDF?
The maximum number of processors that can be declared in one LDF is 6 for the ADSP-21160.
From: Analog Devices EE-148 Introduction to SHARC Multiprocessor Systems Using VisualDSP++
Are ADSP-21160 link ports compatible with ADSP-2106x link ports?
Yes, they are logically compatible, though only an ADSP-2106xL is electrically compatible without a voltage conversion stage.
What registers control link port operations?
The SYSCON, LCOM, LAR, and LCTLx registers control the link ports operating modes for the I/O processor.
Which development tools were used to create the code examples in this note?
The code was developed using VisualDSP++1.0.
From: EE-140 Using the ADSP-21160 Serial Ports in Multi-channel Mode
What value is placed in the KEY WD0 register for the receive comparison example?
The data value placed in the KEY WD0 register is 0x33333333.
From: EE-140 Using the ADSP-21160 Serial Ports in Multi-channel Mode
