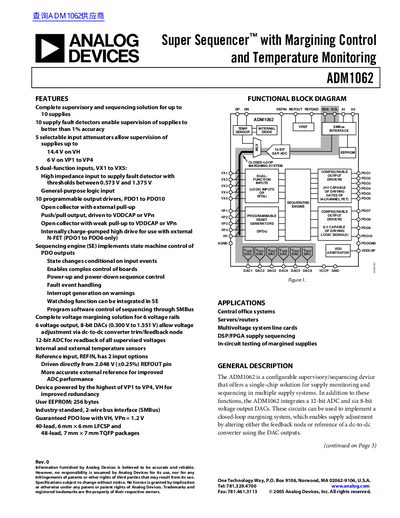

Analog Devices ADM1062 Datasheet
The ADM1062 is a configurable supervisory and sequencing device designed for multiple supply systems. It integrates a 12-bit ADC and six 8-bit voltage output DACs to implement closed-loop margining systems. The device features up to 10 supply fault detectors with better than 1% accuracy and 10 programmable output drivers for sequencing control.
Read onlineAnalog Devices ADM1062 specifications
| Supply Voltage Range (VH) | 3.0 V to 14.4 V |
|---|---|
| Supply Voltage Range (VPn) | 3.0 V to 6.0 V |
| Operating Temperature Range | -40°C to +85°C |
| ADC Resolution | 12 Bits |
| DAC Resolution | 8 Bits |
| Supply Fault Detector Accuracy | Better than 1% |
| EEPROM Size | 256 bytes |
Source: Analog Devices ADM1062 Datasheet
All Analog Devices ADM1062 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the VH pin?
The maximum supply voltage for the VH pin is 14.4 V.
How many supply fault detectors does the ADM1062 have?
The ADM1062 has 10 supply fault detectors.
What is the maximum voltage allowed on the VH pin?
The maximum voltage on the VH pin is 16 V.
How many programmable driver outputs does the ADM1062 provide?
It provides ten programmable driver outputs, labeled PDO1 through PDO10.
What bus interface does the ADM1062 use?
The ADM1062 uses an industry‑standard 2‑wire SMBus interface.
What is the input voltage range for the VH pin?
The VH pin operates from 3.0 V up to 14.4 V.
