The ADM1062 is a super sequencer with margining control and temperature monitoring. It features 10 programmable driver outputs, 5 selectable input attenuators, 5 dual-function inputs, 1 high impedance input to supply fault detector, 1 general purpose logic input, and 5 supply fault detectors.
The ADM1062 Super Sequencer with Margining Control is a configurable supervisory and sequencing device that monitors up to ten supplies, integrates a 12‑bit ADC, six 8‑bit DACs, and a 256‑byte EEPROM. It offers programmable inputs, driver outputs, and margining capabilities for voltage and temperature monitoring.

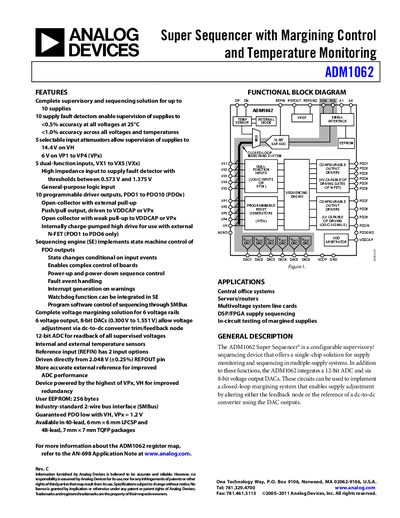

The handbook includes functional block diagrams, application examples, detailed specifications, absolute maximum ratings, pin configurations, programming guidelines, and an ordering guide for the 40‑lead LFCSP and 48‑lead TQFP packages.
| Supply Voltage Range (VH) | 3.0 V to 14.4 V |
|---|---|
| Number of Programmable Driver Outputs | 10 (PDO1 to PDO10) |
| ADC Resolution | 12 bits |
| User EEPROM Size | 256 bytes |
| Operating Temperature Range | -40 °C to +85 °C |
The maximum voltage on the VH pin is 16 V.
It provides ten programmable driver outputs, labeled PDO1 through PDO10.
