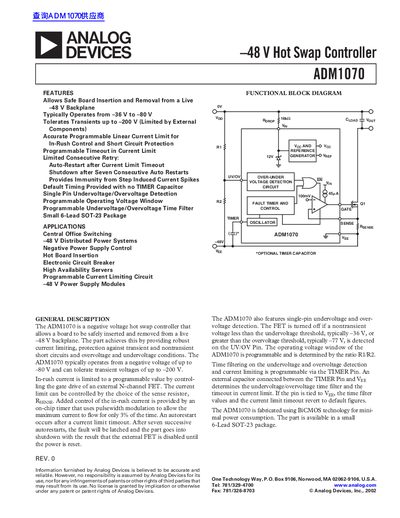

Analog Devices ADM1070 -48 V Hot Swap Controller Datasheet
The ADM1070 is a negative voltage hot swap controller designed to allow a board to be safely inserted and removed from a live -48 V backplane. It achieves this by providing robust current limiting, protection against transient and nontransient short circuits, and overvoltage and undervoltage conditions. The device typically operates from a negative voltage of up to -80 V and can tolerate transient voltages of up to -200 V.
Read onlineAnalog Devices ADM1070 specifications
| Maximum Voltage Range | -200 V to -20 V |
|---|---|
| Typical Operating Voltage Range | -77 V to -36 V |
| Quiescent Supply Current | 0.4 mA to 1.3 mA |
| Undervoltage Falling Threshold | 0.81 V to 0.91 V |
| Overvoltage Rising Threshold | 1.89 V to 2.05 V |
| Maximum Gate Voltage | 11 V to 13 V |
| Package Type | 6-Lead SOT-23 |
| Operating Temperature Range | -40 C to +85 C |
Source: Analog Devices ADM1070 -48 V Hot Swap Controller Datasheet
All Analog Devices ADM1070 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical operating voltage range?
The device typically operates from a negative voltage of -77 V to -36 V.
From: Analog Devices ADM1070 -48 V Hot Swap Controller Datasheet
What is the maximum transient voltage tolerance?
The device can tolerate transient voltages of up to -200 V.
From: Analog Devices ADM1070 -48 V Hot Swap Controller Datasheet
What is the primary application of the ADM1070?
It allows a board to be safely inserted and removed from a live -48 V backplane.
From: Analog Devices ADM1070 -48 V Hot Swap Controller Datasheet
How does the device limit in-rush current?
It limits in-rush current by controlling the gate drive of an external N-channel FET.
From: Analog Devices ADM1070 -48 V Hot Swap Controller Datasheet
What voltage range does the ADM1070 support?
It typically operates from –36 V to –80 V and can tolerate transient voltages up to –200 V.
How many consecutive auto‑restarts are allowed before the device shuts down?
The controller allows up to seven consecutive auto‑restarts; after that it latches and shuts down.
