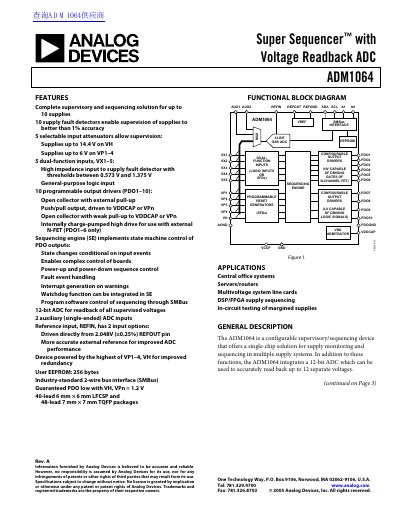

Analog Devices ADM1064 Super Sequencer Datasheet
The ADM1064 is a configurable supervisory and sequencing device designed for multiple supply systems. It integrates a 12-bit ADC to accurately read back up to 12 separate voltages and provides up to ten programmable inputs for monitoring under, over, or out-of-window faults on up to ten supplies. The device features a sequencing engine that implements state machine control of its programmable output drivers (PDOs), enabling complex control of boards, power-up and power-down sequence control, and fault event handling.
Read onlineAnalog Devices ADM1064 specifications
| Supply Voltage Range (VH) | 3.0 V to 14.4 V |
|---|---|
| Supply Voltage Range (VPn) | 3.0 V to 6.0 V |
| Operating Temperature | -40°C to +85°C |
| ADC Resolution | 12 Bits |
| Supply Fault Detector Accuracy | better than 1% |
| Number of Programmable Outputs | 10 |
| Maximum Supply Current (VH, IVPn) | 6 mA |
| Oscillator Frequency | 90 to 110 kHz |
