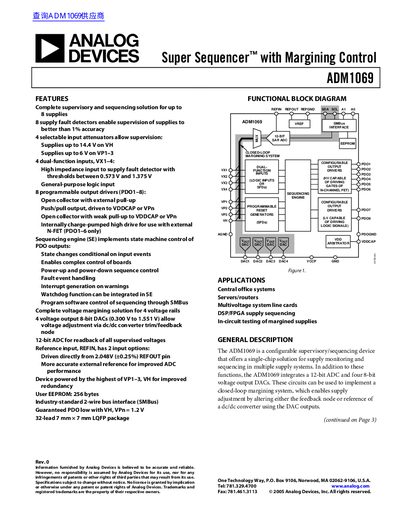

Analog Devices ADM1069 Supervisory and Sequencing Device Datasheet
The ADM1069 is a single-chip solution designed for supply monitoring and sequencing in multiple supply systems. It integrates eight supply fault detectors capable of supervision to better than 1% accuracy and four selectable input attenuators allowing the monitoring of supplies up to 14.4 V on VH or 6 V on VP1-3.
The device features a logical core consisting of a state-machine-based sequencing engine that provides up to 63 different states for flexible control of outputs based on input conditions. It includes eight programmable output drivers (PDOs) capable of driving N-channel FET gates and four 8-bit voltage output DACs for closed-loop margining systems.
Analog Devices ADM1069 specifications
| Detection Ranges (High Range) | 6 to 14.4 V |
|---|---|
| Detection Ranges (Midrange VPn Pins) | 2.5 to 6 V |
| Resolution (ADC) | 12 Bits |
| Resolution (DACs) | 8 Bits |
| Supply Current (Typical) | 4.2 mA |
| Package Type | 32-lead 7 mm x 7 mm LQFP |
