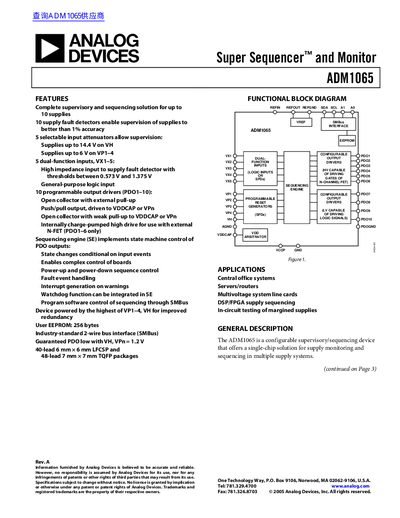

Analog Devices ADM1065 Super Sequencer and Monitor Datasheet
The ADM1065 is a configurable supervisory and sequencing device designed for multiple supply systems. It features up to ten programmable inputs for monitoring supply faults with better than 1% accuracy and five selectable input attenuators to support supply voltages up to 14.4 V. The device includes ten programmable output drivers (PDOs) that can function as logic enables or drive N-channel FET gates, controlled by a sequencing engine that implements state machine logic.
Read onlineAnalog Devices ADM1065 specifications
| Supply Fault Detection Accuracy | better than 1% |
|---|---|
| Number of Programmable Inputs | 10 |
| Number of Programmable Outputs | 10 |
| Maximum VH Supply Voltage | 14.4 V |
| Maximum VPn Supply Voltage | 6.0 V |
| Operating Temperature Range | -40°C to +85°C |
| EEPROM Size | 256 bytes |
| Interface Type | SMBus |
Source: Analog Devices ADM1065 Super Sequencer and Monitor Datasheet
All Analog Devices ADM1065 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the VH pin?
The maximum supply voltage for the VH pin is 14.4 V.
From: Analog Devices ADM1065 Super Sequencer and Monitor Datasheet
How many programmable output drivers does the ADM1065 have?
The ADM1065 has 10 programmable output drivers (PDO1-10).
From: Analog Devices ADM1065 Super Sequencer and Monitor Datasheet
What is the supply voltage range for the VH pin?
The VH pin operates from 3.0 V up to 14.4 V.
From: Analog Devices ADM1065 Super Sequencer Product Handbook
How many programmable driver outputs does the ADM1065 provide?
The device provides ten programmable driver outputs.
From: Analog Devices ADM1065 Super Sequencer Product Handbook
What is the input voltage range for the VH pin?
The VH pin accepts voltages from 3.0 V to 14.4 V.
How many programmable driver outputs does the ADM1065 provide?
The device provides ten programmable driver outputs (PDO1 to PDO10).
