Start here

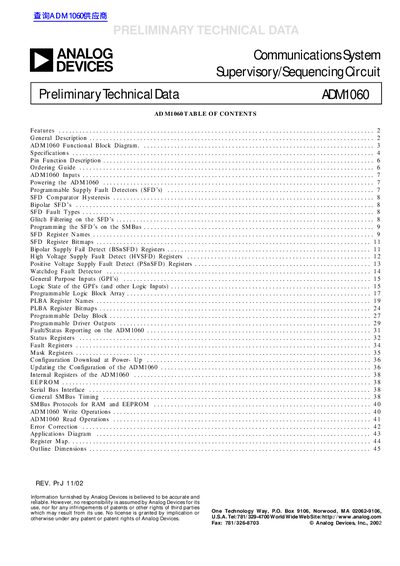

Analog Devices ADM1060 Preliminary Technical Data Datasheet
The ADM1060 is a programmable supervisory and sequencing device designed for communications systems, servers, and central office applications. It provides a single-chip solution for detecting faults on multiple power supplies, including one high-voltage supply (up to 14.4V), four positive voltage-only supplies (up to 6V), and two bipolar voltage supplies (up to +/-6V). The device features industry-standard SMBus interface for programming and status reporting.
Read onlineAnalog Devices ADM1060 specifications
| High Voltage Supply Range | 4.8V to 14.4V |
|---|---|
| Positive Voltage Only Supply Range | Up to 6V |
| Bipolar Voltage Supply Range | +/-6V |
| Watchdog Timeout Delay | 200ms to 12.8sec |
| EEPROM Memory Size | 512 Bytes |
| Supply Current (Typical) | 3 mA |
Source: Analog Devices ADM1060 Preliminary Technical Data Datasheet
All Analog Devices ADM1060 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum voltage for the high voltage supply detector?
The high voltage supply can detect up to 14.4V.
From: Analog Devices ADM1060 Preliminary Technical Data Datasheet
How many independent supplies can the ADM1060 monitor?
The device can detect faults on up to 7 independent supplies.
From: Analog Devices ADM1060 Preliminary Technical Data Datasheet
How many independent supplies can the ADM1060 monitor?
It can detect faults on seven independent supplies.
From: Analog Devices ADM1060 Communications System Supervisory/Sequencing Circuit Datasheet
What is the programmable timeout range for the watchdog detector?
The watchdog timeout can be programmed from 200 ms up to 12.8 seconds.
From: Analog Devices ADM1060 Communications System Supervisory/Sequencing Circuit Datasheet
What is the watchdog timer timeout range?
The watchdog timer timeout can be programmed from 0 ms up to 12.8 seconds.
How many programmable driver outputs does the ADM1060 provide?
The ADM1060 provides nine programmable driver outputs.
