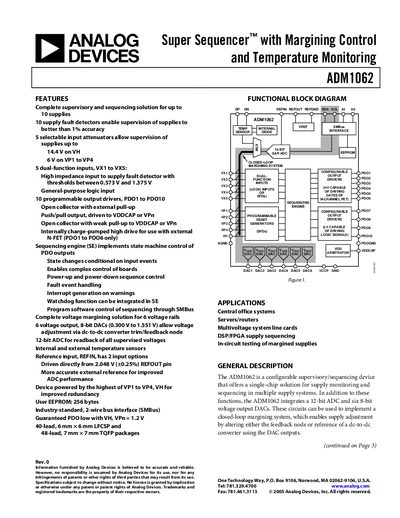

This datasheet provides a comprehensive overview of the features and capabilities of the ADM1062, including the 10 supply fault detectors, 5 selectable input attenuators, 5 dual-function inputs, 10 programmable output drivers, and the sequencing engine (SE).
The ADM1062 is a configurable supervisory and sequencing device that monitors up to ten supplies and provides programmable output drivers. It integrates a 12‑bit ADC, six 8‑bit DACs, temperature sensors, and an EEPROM for configuration storage.
The device is controlled via a standard 2‑wire SMBus interface and is offered in 40‑lead LFCSP and 48‑lead TQFP packages. It is intended for use in central office systems, servers, multivoltage line cards, and in‑circuit testing of margin‑adjusted supplies.
| VH Supply Voltage Range | 3.0 V to 14.4 V |
|---|---|
| Supply Current (Iven) | 4.2 µA typical |
| ADC Resolution | 12 Bits |
| DAC Resolution | 8 Bits |
| Local Temperature Sensor Accuracy | ±3 °C |
The ADM1062 uses an industry‑standard 2‑wire SMBus interface.
