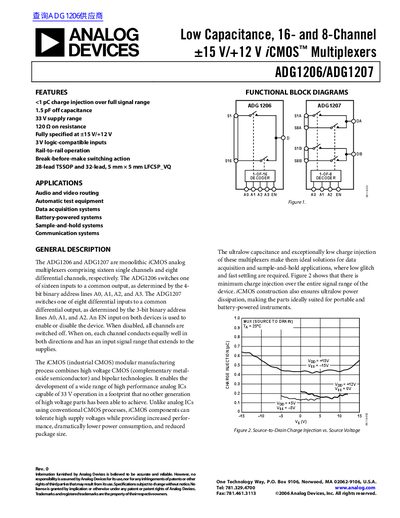

ANALOG DEVICES ADG1206/ADG1207 Low Capacitance 16-and 8-Channel ±15 V/+12 V iCMOS Multiplexers handbook
The ADG1206 and ADG1207 are monolithic iCMOS analog multiplexers designed for high-performance data acquisition and sample-and-hold systems. The ADG1206 switches one of sixteen inputs to a common output using 4-bit binary address lines, while the ADG1207 handles eight differential channels with 3-bit addressing. Both devices feature an EN input to enable or disable operation.
Constructed using high voltage CMOS and bipolar technologies, these multiplexers support up to 33 V supply ranges. Key features include less than 1 pC charge injection, 1.5 pF off capacitance for the ADG1206, and break-before-make switching action. They are available in 28-lead TSSOP and 32-lead LFCSP_VQ packages.
Analog Devices ADG1206 specifications
| On Resistance, Ron | 120 Ω typ / 240 Ω max |
|---|---|
| Charge Injection | <1 pC |
| Off Capacitance (ADG1206) | 1.5 pF typ |
| Supply Range | 33 V |
All Analog Devices ADG1206 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on-resistance for the ADG1206 in dual supply mode?
The maximum on-resistance is 270 Ω when the supply voltage is +13.5 V.
What is the minimum break-before-make time delay?
The minimum break-before-make time delay is 10 ns under specified test conditions.
What is the supply voltage range for the ADG1206/ADG1207?
The devices operate with a ±15 V supply, giving a total 33 V range.
What is the typical on‑resistance of the switches?
The typical on‑resistance is 120 Ω at a supply of +10 V.
What is the maximum supply voltage for the ADG1206/ADG1207?
The devices support a 33 V supply range, typically operated at +15 V and –15 V (dual) or +12 V (single).
What is the on‑resistance of the switches?
The on‑resistance is about 120 Ω typical at a 10 V supply.
