Key facts
- Brand
- Analog Devices
- Model
- ADG1209
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-08
Start here

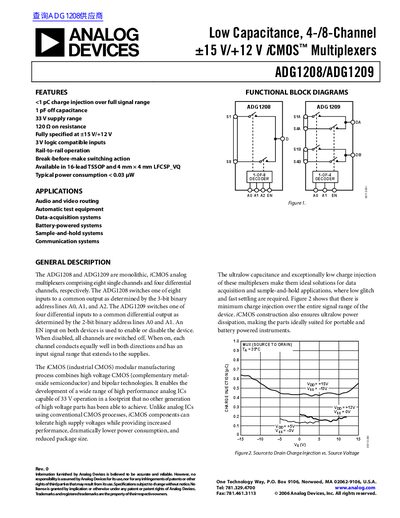

ANALOG DEVICES ADG1208/ADG1209 Low Capacitance 4-/8-Channel ±15 V/+12 V iCMOS Multiplexers handbook
The document describes the ADG1208 and ADG1209 as monolithic, iCMOS analog multiplexers comprising eight single channels and four differential channels, respectively. These devices are designed for applications requiring low charge injection and fast settling times, such as data acquisition systems and sample-and-hold circuits.
Read onlineAnalog Devices ADG1209 specifications
| On Resistance, Ron | 120 Ω typ / 240 Ω max |
|---|---|
| Off Capacitance (Cs) | 1 pF typ |
| Supply Range | 33 V supply range |
| Charge Injection | < 1 pC |
| Operating Temperature Range (Industrial) | -40°C to +125°C |
All Analog Devices ADG1209 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for these multiplexers?
They are ideal for audio and video routing, automatic test equipment, data-acquisition systems, battery-powered systems, sample-and-hold systems, and communication systems.
How many channels does the ADG1208 have?
The ADG1208 comprises eight single channels.
What is the typical on resistance of the ADG1208/ADG1209?
The typical on resistance is 120 Ω.
From: Analog Devices ADG1208/ADG1209 Analog Multiplexer Datasheet
What is the charge injection of these multiplexers?
Typical charge injection is less than 1 pC.
From: Analog Devices ADG1208/ADG1209 Analog Multiplexer Datasheet
