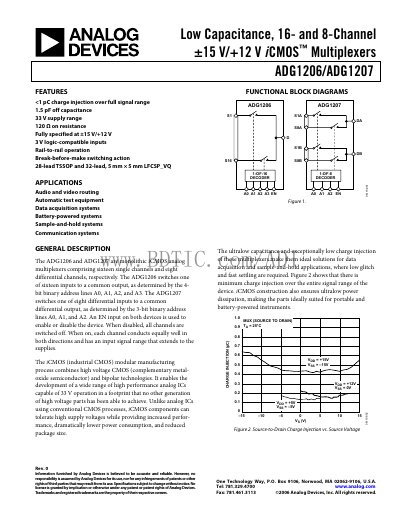

ADG1206/ADG1207 are monolithic iCMOS analog multiplexers comprising sixteen single channels and eight differential channels, respectively. They feature low capacitance, low on resistance, and high accuracy. ADG1206/ADG1207 are suitable for audio and video routing, automatic test equipment, data acquisition systems, battery-powered systems, sample-and-hold systems, and communication systems.
The ADG1206 (16‑channel) and ADG1207 (8‑channel differential) are monolithic iCMOS analog multiplexers designed for ultra‑low charge injection (<1 pC) and low on‑resistance (≈120 Ω). They operate from dual supplies up to ±15 V (or single‑supply +12 V) and feature rail‑to‑rail operation, break‑before‑make switching, and 3 V logic‑compatible inputs.
Typical applications include audio/video routing, automatic test equipment, data‑acquisition systems, battery‑powered instruments, sample‑and‑hold circuits, and communication equipment. The devices are offered in 28‑lead TSSOP and 32‑lead LFCSP packages and meet JEDEC standards.
| Supply range | 33 V |
|---|---|
| On‑resistance (Ron) | 120 Ω typical |
| Charge injection | <1 pC over full signal range |
| Digital input capacitance | 2 pF typ |
| 3‑dB bandwidth (ADG1206) | 280 MHz typ |
| 3‑dB bandwidth (ADG1207) | 490 MHz typ |
| Source off‑leakage current | 0.03 nA typ |
| Dual‑supply voltage limits | Vop = +15 V ±10 %, Vss = –15 V ±10 % |
The devices support a 33 V supply range, typically operated at +15 V and –15 V (dual) or +12 V (single).
The on‑resistance is about 120 Ω typical at a 10 V supply.
Charge injection is less than 1 pC over the full signal range.
