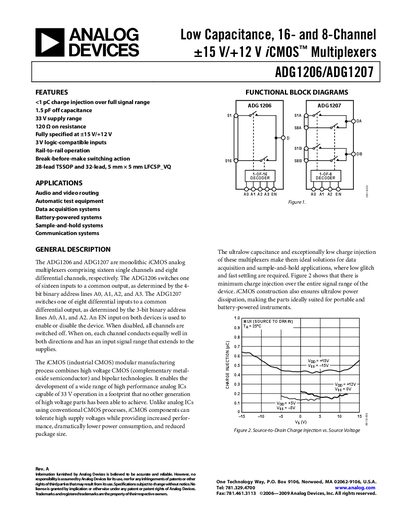

The ADG1206 and ADG1207 are monolithic iCMOS analog multiplexers comprising sixteen single channels and eight differential channels, respectively.
The ADG1206 (16‑channel) and ADG1207 (8‑channel differential) are monolithic iCMOS analog multiplexers that switch inputs to a common output under digital control. They feature a 33 V supply range, 120 Ω typical on‑resistance, less than 1 pC charge injection, and 3 V logic‑compatible inputs, making them suitable for high‑performance data‑acquisition and sample‑and‑hold applications.
Typical applications include audio/video routing, automatic test equipment, battery‑powered instruments, and communication systems. The devices operate from dual‑supply (+15 V/‑15 V) or single‑supply (12 V) configurations, provide rail‑to‑rail operation, and include ESD protection and break‑before‑make switching.
| Supply voltage range | ±15 V (33 V total) |
|---|---|
| On‑resistance (Ron) | 120 Ω typ |
| Charge injection | <1 pC over full signal range |
| Off capacitance | 1.5 pF typ |
| Digital input low voltage | 0.8 V max |
| Break‑before‑make time delay | 20 ns typ |
| Off isolation | -85 dB typ |
The devices operate with a ±15 V supply, giving a total 33 V range.
The typical on‑resistance is 120 Ω at a supply of +10 V.
They exhibit less than 1 pC of charge injection over the full signal range.
