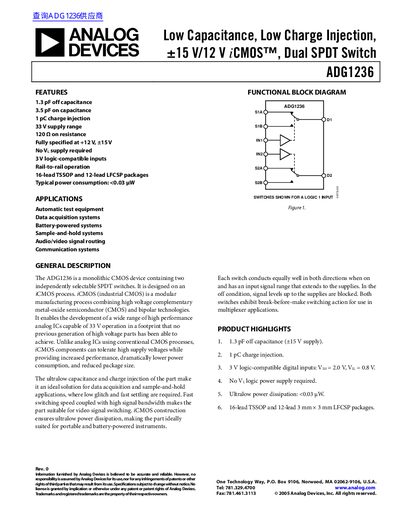

Analog Devices ADG1236 Dual SPDT Switch Datasheet
The ADG1236 is a monolithic CMOS device containing two independently selectable single-pole double-throw (SPDT) switches. Designed on an iCMOS process, it supports supply voltages up to 33 V and features ultralow off capacitance of 1.3 pF and charge injection of 1 pC.
The document provides comprehensive electrical specifications for both dual supply (+/- 15V) and single supply (12V) configurations. It includes details on analog signal range, on-resistance, leakage currents, dynamic characteristics such as transition time and bandwidth, pin configurations, and absolute maximum ratings.
Analog Devices ADG1236 specifications
| Off Capacitance (Cs) | 1.3 pF typ |
|---|---|
| On Capacitance (Cp, Cs) | 3.5 pF typ |
| Charge Injection | 1 pC |
| Supply Range | 33 V |
| On Resistance (Ron) | 120 Ohm typ |
| Packages | 16-lead TSSOP and 12-lead LFCSP |
All Analog Devices ADG1236 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical power consumption of the ADG1236?
The typical power consumption is less than 0.03 uW.
Is a Vi logic power supply required for the ADG1236?
No, no Vi logic power supply is required for this device.
What is the maximum supply voltage for the ADG1236?
The device can operate with a supply range of up to ±33 V.
What is the typical on‑resistance of the ADG1236 switch?
The typical on‑resistance is about 120 Ω.
What supply voltage range does the ADG1236 support?
The device operates from +15 V to –15 V, giving a total 33 V supply range.
What are the typical on‑resistance and off‑capacitance values?
Typical on‑resistance is 120 Ω and off‑capacitance is 1.3 pF.
