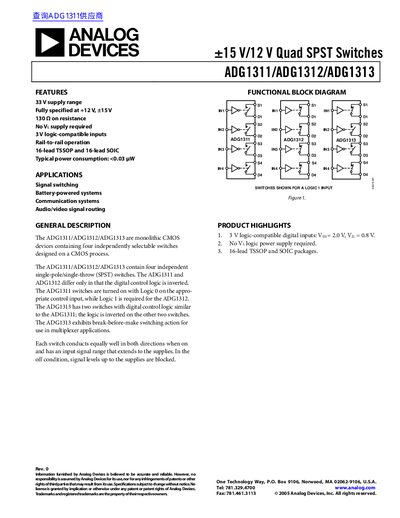

Analog Devices ADG1311/ADG1312/ADG1313 Quad SPST Switches Datasheet
The document describes three monolithic CMOS devices containing four independently selectable single-pole/single-throw (SPST) switches. The models differ in their digital control logic inversion states; the ADG1313 specifically exhibits break-before-make switching action for multiplexer applications. These devices are designed to conduct equally well in both directions with a supply range of 33 V and no Vi supply required.
Read onlineAnalog Devices ADG1311 specifications
| Supply Range | 33 V |
|---|---|
| On Resistance (Ron) | 130 Ω typ / 200 Ω max |
| Logic-Compatible Inputs | 3 V |
| Package Types | 16-lead TSSOP and 16-lead SOIC |
| Operating Temperature Range (Y Version) | -40°C to +105°C |
Source: Analog Devices ADG1311/ADG1312/ADG1313 Quad SPST Switches Datasheet
All Analog Devices ADG1311 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between ADG1311 and ADG1312?
The ADG1311 and ADG1312 differ only in that the digital control logic is inverted.
From: Analog Devices ADG1311/ADG1312/ADG1313 Quad SPST Switches Datasheet
Does the ADG1313 have break-before-make switching?
Yes, the ADG1313 exhibits break-before-make switching action for use in multiplexer applications.
From: Analog Devices ADG1311/ADG1312/ADG1313 Quad SPST Switches Datasheet
Which package types are available for the ADG1311/ADG1312/ADG1313?
Both 16‑lead TSSOP and 16‑lead SOIC packages are offered.
From: Analog Devices ADG1311/ADG1312/ADG1313 Quad SPST Switches Datasheet
What is the maximum dual‑supply voltage range for these switches?
The devices support Vop = +15 V ±10 % and Vss = –15 V ±10 %.
From: Analog Devices ADG1311/ADG1312/ADG1313 Quad SPST Switches Datasheet
