Start here

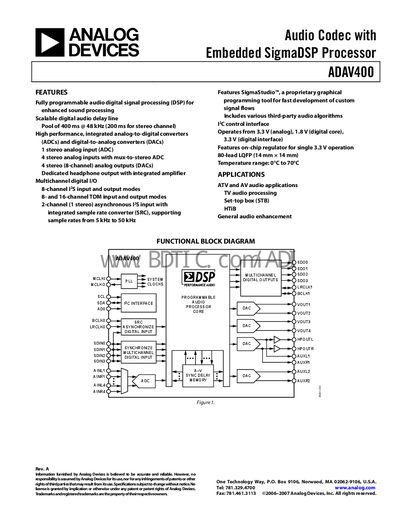

Analog Devices ADAV400 Audio Codec Handbook
The ADAV400 is an audio codec that integrates high‑performance analog and digital I/Os with an embedded SigmaDSP processor. It offers up to eight analog input channels (four stereo pairs), eight analog output channels, a dedicated headphone output, and multichannel digital I/O with an integrated sample‑rate converter supporting 5 kHz‑50 kHz. The device is targeted at ATV/AV, TV audio, set‑top boxes, and general audio enhancement applications.
This handbook provides a functional block diagram, detailed specifications, digital timing diagrams, absolute maximum ratings, pin‑out descriptions, and an ordering guide. It also includes information on power supplies, control ports, and programming considerations for designers using the SigmaStudio™ tool.
Analog Devices ADAV400 specifications
| ADC Resolution | 24 Bits |
|---|---|
| DAC Resolution | 24 Bits |
| Dynamic Range (ADC) | 95 dB |
| Number of Analog Inputs | 4 stereo channels |
| Number of Analog Outputs | 4 stereo output channels |
| Supply Voltage (Digital) | 1.6 V to 2.0 V |
| Operating Temperature | 0°C to 70°C |
All Analog Devices ADAV400 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum sample rate supported by the integrated SRC?
The integrated Sample Rate Converter (SRC) supports any input sample rate in the range of 5 kHz to 50 kHz.
Does the ADAV400 include a dedicated headphone output?
Yes, it features a dedicated headphone channel included with integrated amplifiers.
What is the sample rate range supported by the integrated SRC?
The device supports any input sample rates in the range from 5 kHz to 50 kHz.
From: ANALOG DEVICES ADAV400 SigmaDSP Multichannel Audio Processor with Embedded 2ADC/8DAC Codec handbook
What is the temperature operating range?
The device operates within a temperature range of 0°C to +70°C.
From: ANALOG DEVICES ADAV400 SigmaDSP Multichannel Audio Processor with Embedded 2ADC/8DAC Codec handbook
What sample‑rate range does the ADAV400’s integrated SRC support?
The integrated sample‑rate converter supports input sample rates from 5 kHz to 50 kHz.
How many analog input channels are available on the ADAV400?
The ADAV400 provides eight analog input channels, arranged as four stereo input pairs.
