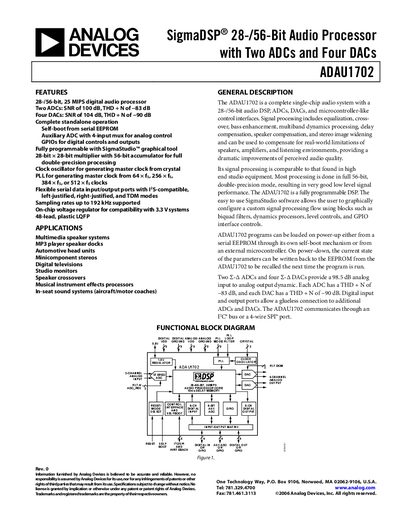

ANALOG DEVICES SigmaDSP 28-/56-Bit Audio Processor with Two ADCs Four DACs ADAU1702 handbook
The ADAU1702 is a single‑chip SigmaDSP audio processor that provides 28‑/56‑bit digital audio processing, two high‑performance ADCs and four DACs, and a built‑in microcontroller‑like control interface. It supports sampling rates up to 192 kHz and offers programmable signal‑processing blocks such as equalizers, dynamics processors, and speaker compensation.
The handbook covers the device’s features, applications, functional block diagram, detailed specifications, pin configurations, power and clock circuitry, digital timing diagrams, register maps, and programming procedures. It also includes mechanical dimensions, ordering information, and regulatory notes.
Analog Devices ADAU1702 specifications
| Processor Bit Depth | 28/56-bit, 25 MHz |
|---|---|
| ADC Dynamic Range | 102 dB |
| ADC THD+N | -90 dB |
| DAC Dynamic Range | 103 dB |
| DAC THD+N | -90 dB |
| Sampling Rate | up to 192 kHz |
| Package Type | 48-lead LQFP |
| Digital Supply Voltage | 1.8 V |
| Analog Supply Voltage | 3.3 V |
| Operating Temperature | -0°C to +70°C |
Source: ANALOG DEVICES ADAU1702 SigmaDSP 28/56-Bit Audio Processor with 2ADC/4DAC handbook
All Analog Devices ADAU1702 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum sampling rate supported?
The device supports sampling rates up to 192 kHz.
From: ANALOG DEVICES ADAU1702 SigmaDSP 28/56-Bit Audio Processor with 2ADC/4DAC handbook
Can the device operate from a single 3.3 V supply?
Yes, an on-board voltage regulator allows operation from a 3.3 V supply for the digital circuitry.
From: ANALOG DEVICES ADAU1702 SigmaDSP 28/56-Bit Audio Processor with 2ADC/4DAC handbook
What is the maximum sampling rate supported by the ADAU1702?
The device supports sampling rates up to 192 kHz.
From: ANALOG DEVICES SigmaDSP 28-/56-Bit Audio Processor with Two ADCs Four DACs ADAU1702 handbook
What are the supply voltages for the analog and digital sections?
The analog supply (AVDD) is 3.3 V and the digital supply (DVDD) is 1.8 V.
From: ANALOG DEVICES SigmaDSP 28-/56-Bit Audio Processor with Two ADCs Four DACs ADAU1702 handbook
What is the ADC resolution of the ADAU1702?
The ADCs have a resolution of 24 bits.
What are the supply voltages for the analog and digital sections?
The analog supply (AVDD) is 3.3 V and the digital supply (DVDD) is 1.8 V.
