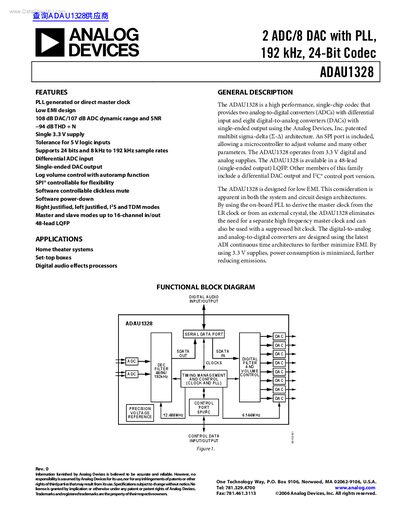

ANALOG DEVICES ADAU1328 2 ADC/8 DAC with PLL 192 kHz 24-Bit Codec handbook
The document describes the ADAU1328, a high-performance single-chip audio codec utilizing Analog Devices' patented multibit sigma-delta (Z-A) architecture. It provides two analog-to-digital converters (ADCs) with differential input and eight digital-to-analog converters (DACs) with single-ended output.
Read onlineAnalog Devices ADAU1328 specifications
| ADC Resolution | 24 Bits |
|---|---|
| Dynamic Range (No Filter) | 98 to 102 dB |
| Total Harmonic Distortion + Noise | -96 to -87 dB |
| Supply Voltage (DVDD/AVDD) | 3.0V to 3.6V |
| Master Clock Frequency (PLL mode) | 6.9 MHz to 13.8 MHz |
| Input Sample Rate Support | 8 kHz to 192 kHz |
Source: ANALOG DEVICES ADAU1328 2 ADC/8 DAC with PLL 192 kHz 24-Bit Codec handbook
All Analog Devices ADAU1328 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the ADAU1328?
The ADAU1328 is a high performance, single-chip codec that provides two analog-to-digital converters (ADCs) with differential input and eight digital-to-analog converters (DACs) with single-ended output.
From: ANALOG DEVICES ADAU1328 2 ADC/8 DAC with PLL 192 kHz 24-Bit Codec handbook
What are the operating supply voltages?
The ADAU1328 operates from 3.3 V digital and analog supplies.
From: ANALOG DEVICES ADAU1328 2 ADC/8 DAC with PLL 192 kHz 24-Bit Codec handbook
What supply voltage does the ADAU1328 require?
The codec operates from a single 3.3 V supply for both analog and digital sections.
From: ANALOG DEVICES ADAU1328 2 ADC/8 DAC with PLL 192 kHz 24-Bit Codec English products handbook Rev A
What is the dynamic range of the DAC?
The DAC provides a dynamic range of 108 dB when using the A‑weighted filter.
From: ANALOG DEVICES ADAU1328 2 ADC/8 DAC with PLL 192 kHz 24-Bit Codec English products handbook Rev A
