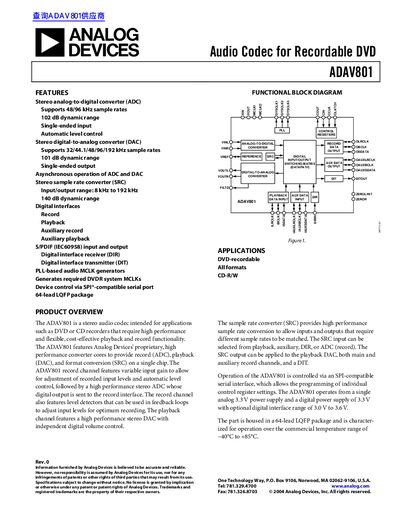

Analog Devices ADAV801 Audio Codec for Recordable DVD Datasheet
The ADAV801 is a stereo audio codec designed for applications such as DVD or CD recorders requiring high performance and flexible playback and recording functionality. It integrates an analog-to-digital converter (ADC), a digital-to-analog converter (DAC), and a sample rate converter (SRC) on a single chip.
The device supports asynchronous operation of the ADC and DAC, with input/output ranges from 8 kHz to 192 kHz. It features S/PDIF interfaces for digital audio transmission, PLL-based MCLK generators, and is controlled via an SPI-compatible serial port. The part operates from 3.3 V supplies over a commercial temperature range of -40°C to +85°C.
Analog Devices ADAV801 specifications
| Resolution | 24 Bits |
|---|---|
| Dynamic Range (ADC) | 102 dB at 96 kHz |
| Dynamic Range (DAC) | 101 dB at 96 kHz |
| Sample Rate (ADC) | 48/96 kHz |
| Sample Rate (DAC) | 32/44.1/48/96/192 kHz |
| Operating Temperature | -40°C to +85°C |
| Package Type | 64-lead LQFP |
Source: Analog Devices ADAV801 Audio Codec for Recordable DVD Datasheet
All Analog Devices ADAV801 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the ADAV801 converters?
The ADAV801 features 24-bit resolution for both its ADC and DAC sections.
From: Analog Devices ADAV801 Audio Codec for Recordable DVD Datasheet
What are the supported sample rates for the DAC?
The digital-to-analog converter supports sample rates of 32, 44.1, 48, 96, and 192 kHz.
From: Analog Devices ADAV801 Audio Codec for Recordable DVD Datasheet
What interface is used to control the ADAV801?
The ADAV801 is controlled via an SPI‑compatible serial interface.
From: Analog Devices ADAV801 Audio Codec for Recordable DVD Datasheet Rev A
What sample rates does the DAC support?
The DAC supports 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz sample rates.
From: Analog Devices ADAV801 Audio Codec for Recordable DVD Datasheet Rev A
How is the ADAV801 programmed or controlled?
The ADAV801 is controlled via an SPI‑compatible serial interface that allows programming of individual control registers.
What is the crosstalk performance of the device?
Crosstalk measured by the EIAJ method is -110 dB.
