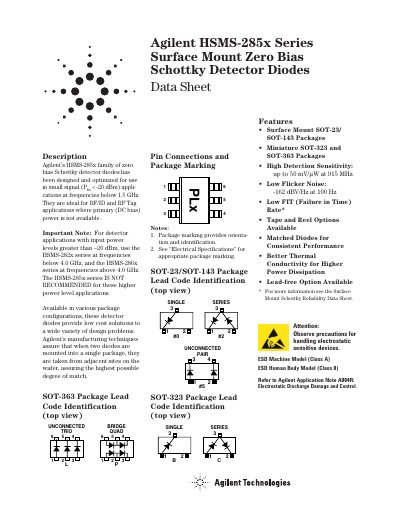

Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Datasheet
The HSMS-285x family are surface‑mount Schottky detector diodes optimized for small‑signal applications (Pin < ‑20 dBm) at frequencies below 1.5 GHz. They are intended for RF/ID and RF tag designs where no DC bias is available, offering high detection sensitivity and low flicker noise.
The document provides detailed electrical specifications, absolute maximum ratings, typical performance curves, recommended PCB footprints, and assembly guidelines. It also includes ordering information for various package types (SOT‑23, SOT‑143, SOT‑323, SOT‑363) and lead‑free options. This manual is written in Chinese.
Agilent HSMS-285X specifications
| Detection Sensitivity | up to 50 mV/µW at 915 MHz |
|---|---|
| Flicker Noise | -162 dBV/Hz at 100 Hz |
| Peak Inverse Voltage (PIV) | 2.0 V |
| Junction Temperature (TJ) | 150 °C |
| Storage Temperature Range | -65 °C to 150 °C |
| Operating Temperature Range | -65 °C to 150 °C |
Source: Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Datasheet
All Agilent HSMS-285X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which Agilent diode series should be used for input powers greater than –20 dBm?
For input powers greater than –20 dBm, use the HSMS‑282x series below 4 GHz or the HSMS‑286x series above 4 GHz.
From: Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Datasheet
What package types are available for the HSMS‑285x diodes?
The HSMS‑285x diodes are offered in SOT‑23, SOT‑143, SOT‑323 and SOT‑363 surface‑mount packages.
From: Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Datasheet
What is the maximum reverse voltage rating for the HSMS-285x diodes?
The maximum reverse voltage is 2.0 V.
From: Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Datasheet
What is the detection sensitivity of the HSMS-285x at 915 MHz?
The diodes provide up to 50 mV per microwatt at 915 MHz.
From: Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Datasheet
