Agilent Technologies HLMP-0103 T-13 /4 (5 mm) Panel Mount Clip Retaining Ring Technical Data

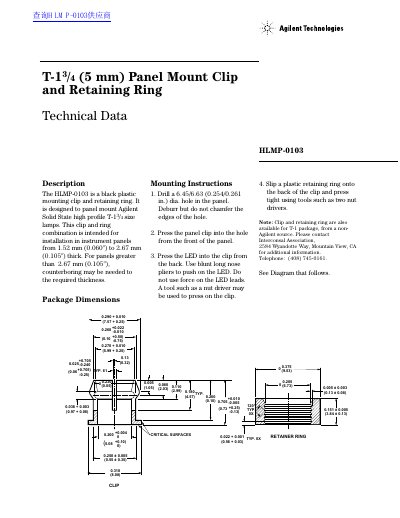

The HLMP-0103 is a black plastic mounting clip and retaining ring combination designed for panel mounting Agilent Solid State high profile T-13/4 size lamps. It is intended for installation in instrument panels with thicknesses from 1.52 mm to 2.67 mm, though counterboring may be required for thicker panels.
The document provides specific drilling and assembly instructions, including hole diameter requirements and the use of blunt long nose pliers or nut drivers for installation. It also notes that similar clips are available for T-1 packages from non-Agilent sources via the Interconsal Association.
Agilent T-13 specifications
| Product Type | Panel Mount Clip and Retaining Ring |
|---|---|
| Color | Black plastic |
| Document Part Number | 5988-4470EN |
Source: Agilent Technologies HLMP-0103 T-13 /4 (5 mm) Panel Mount Clip Retaining Ring Technical Data
