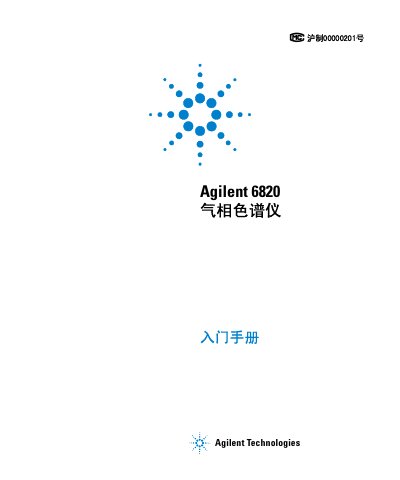

Agilent 6820 Gas Chromatograph User Manual
This manual guides users through the complete setup of the Agilent 6820 gas chromatograph, covering site preparation, hardware installation, connection of carrier gases and detectors, and initial system checks. Detailed safety warnings address high voltage, static discharge, high temperature, and hydrogen gas hazards.
Operational sections describe how to configure the instrument, set test conditions, ignite the FID flame, and perform routine performance checks. Maintenance and troubleshooting procedures are also included, with instructions for replacing consumable parts and diagnosing hardware‑related issues. This manual is written in Chinese.
Agilent 6820 specifications
| Average Weight | 60 kg |
|---|---|
| Operating Altitude | 4000m |
| Maximum Power Consumption | 2950 VA |
| Frequency Range | 47.5~63 Hz |
| Column Oven Max Temperature | 425 °C |
| Temperature Setpoint Resolution | 1 °C |
| Maximum Temperature Ramp Rate | 75 °C/min |
| Maximum Run Time | 999.99 min |
| Number of Heated Zones | six |
| Maximum Inlets Installed | two |
| Maximum Detectors Installed | two |
| Data Acquisition Rate (FID) | 200 Hz |
| Operating System | Windows 2000 Professional or Windows XP Professional |
All Agilent 6820 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
- Agilent 6820 GC System Application Note for Determination of Benzene and Toluene in Gasoline Using ASTM D3606 4 p
- Running ASTM Method D4815 for Determining Oxygenates in Gasoline on the Agilent 6820 GC Application Note 6 p
- Agilent 6820 GC System Application Note for Determining Aromatics in Finished Gasoline 6 p
- Agilent 6820 Gas Chromatography System Aromatic Solvent Analysis Application Note 6 p
- Agilent 6820 Series Gas Chromatograph Analysis of Aromatic Hydrocarbons Application Note 16 p
- Agilent 6820 Gas Chromatograph Application Note: Determination of Low Level Hydrocarbon Impurities in Propylene 6 p
- Agilent 6820 Gas Chromatograph Light Hydrocarbon Analysis Application Note 4 p
- Agilent 6820 GC-NPD Analysis of Organophosphorus Pesticides Application Note 4 p
- Agilent 6820 GC Analysis of Organochlorine and Pyrethroid Pesticides Application Note 4 p
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Agilent Analysis of Carbamate Pesticides Using Agilent 6820 Gas Chromatograph/Nitrogen Phosphorus Detector Manual
- Agilent 6820 Gas Chromatograph - TCD Accessory Installation Guide
- Agilent 6820 Gas Chromatograph - Valve/Valve Box Installation Guide
- Agilent 6820 Gas Chromatograph - Nickel Catalyst Tube Installation Guide
Questions answered in these manuals
What are the power requirements for the Agilent 6820?
The system supports voltages of 120 V, 200 V, 220 V, 230 V, and 240 V with a frequency range of 47.5~63 Hz.
Which detectors are available for the 6820 system?
Available detectors include Flame ionization detector (FID), Thermal conductivity detector (TCD), Electron capture detector (ECD), and Nitrogen phosphorous detector (NPD).
Which detector is used in this application method?
The method uses a flame ionization detector (FID), which is noted as easier to maintain than the thermal conductivity detector (TCD) used in the standard ASTM D3606.
What software is used for control and data analysis?
Agilent Cerity NDS software is used for 6820 GC control and data analysis.
What compounds are determined by this method?
The specific compounds determined include methyl tert-butylether (MTBE), ethyl tert-butylether (ETBE), tert-amylmethylether (TAME), diisopropylether (DIPE), and various alcohols such as methanol, ethanol, and propanol.
What is the recommended backflush time for analyzing DIPE?
For this system, a backflush time of 0.22 minutes is used for the analysis of DIPE to ensure hydrocarbons are completely eluted while ethers are retained.
