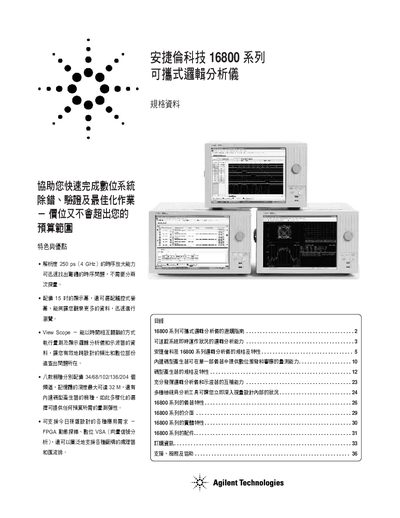

Agilent 16800 Series Portable Logic Analyzer User Manual
This manual introduces the Agilent 16800 series portable logic analyzer, highlighting its high‑resolution timing (4 GHz/250 ps), up to 32 M memory depth, and selectable channel counts ranging from 34 to 204. It explains key features such as built‑in pattern generators, eye‑finder analysis, and automated trigger settings to aid rapid digital system debugging and verification.
The document also covers selection guidance, interface options, accessory compatibility, ordering details, and support services, helping users choose the right configuration and maintain the instrument throughout its lifecycle. This manual is written in Chinese.
Agilent 16800 series specifications
| Timing resolution | 250 ps (4 GHz) |
|---|---|
| Channel options | 34, 68, 102, 136, 204 |
| Voltage threshold range | -5 V to 5 V |
Source: Agilent 16800 Series Portable Logic Analyzer User Manual
All Agilent 16800 series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the timing resolution of the 16800 series analyzer?
It provides a 250 ps resolution, equivalent to a 4 GHz timing bandwidth.
From: Agilent 16800 Series Portable Logic Analyzer User Manual
What probe connector does the analyzer use?
It uses a 40‑pin cable connector for probe attachment.
From: Agilent 16800 Series Portable Logic Analyzer User Manual
What is the timing resolution of the Agilent 16800 series logic analyzer?
It provides a timing resolution of 250 ps, equivalent to a 4 GHz timing zoom.
From: Agilent 16800 Series Portable Logic Analyzer Selection Guide
How many channels are available for the 16800 series?
The series offers models with 34, 68, 102, 136, or 204 channels.
From: Agilent 16800 Series Portable Logic Analyzer Selection Guide
