Agilent HCNR201 Manuals

ManualLib has 3 documents for the Agilent HCNR201: 2 datasheets. Every file can be read online or downloaded as a PDF for free.

Datasheet 2

Key facts

Brand
Agilent
Model
HCNR201
Industry
Industrial
Documents
3
Languages
ZH · EN
Last added
2026-10-12

Start here

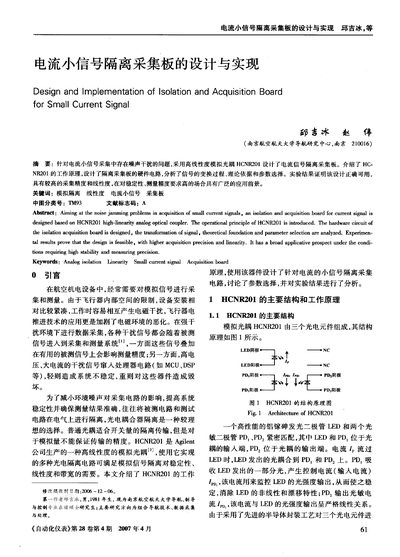

Design and Implementation of Isolation and Acquisition Board for Small Current Signal

Design and Implementation of Isolation and Acquisition Board for Small Current Signal

Other 3 pages · 270 KB · ZH

The document introduces a design for an isolation and acquisition board for small current signals, addressing noise interference issues in acquisition systems. It utilizes the Agilent HCNR201 high-linearity analog optical coupler to ensure stability and measurement precision in environments requiring high accuracy, such as aviation electromechanical equipment. This manual is written in Chinese.

Read online

Agilent HCNR201 specifications

Low Nonlinearity0.01%
Transfer Gain (HCNR200)= 15%
Transfer Gain (HCNR201)+ 5%
Gain Temperature Coefficient-65 ppm/°C
BandwidthDC to >1 MHz
Package Type8-Pin DIP
Input-Output Withstand Voltage5000 Vrms
LED Bandwidth9 MHz

Source: Agilent HCNR200/HCNR201 High-Linearity Analog Optocoupler Technical Data

All Agilent HCNR201 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What are the main applications for the HCNR200/201?

They are used for low cost analog isolation in telecom, industrial process control, SMPS feedback loops, and medical devices.

From: Agilent HCNR200/HCNR201 High-Linearity Analog Optocoupler Technical Data

Is a surface mount option available?

Yes, a Gull Wing Surface Mount Lead Option is available under Option #300.

From: Agilent HCNR200/HCNR201 High-Linearity Analog Optocoupler Technical Data

What is the recommended operating temperature range?

The recommended operating temperature range is from -40 °C to +85 °C.

From: Agilent Technologies HCNR200 HCNR201 handbook

What is the maximum storage temperature for the HCNR200/201?

The device can be stored at temperatures ranging from -55 °C to +125 °C.

From: Agilent Technologies HCNR200 HCNR201 handbook
