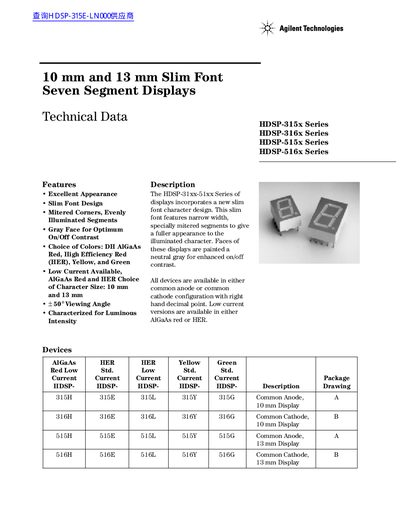

Agilent Technologies HDSP-315x Series HDSP-316x Series HDSP-515x Series HDSP-516x Series 10 mm 13 mm Slim Font Seven Segment Displays Technical Data
Datasheet 11 pages · 89 KB · EN
This datasheet provides technical specifications for the Agilent Technologies HDSP-315x, HDSP-316x, HDSP-515x, and HDSP-516x series of seven-segment displays. These devices feature a slim font design with mitered corners and are available in 10 mm and 13 mm sizes.
Read onlineAgilent HDSP-315X specifications
| Character Size | 10 mm and 13 mm |
|---|---|
| Viewing Angle | +50° |
| Storage Temperature Range | -40 to +100 °C |
| Reverse Voltage per Segment or DP | 3.0 V |
All Agilent HDSP-315X documents by type
Datasheet 4
Ratings, dimensions and ordering codes, for selection and design work.
- Agilent Technologies HDSP-315x Series HDSP-316x Series HDSP-515x Series HDSP-516x Series 10 mm 13 mm Slim Font Seven Segment Displays Technical Data 11 p
- Agilent HDSP-315x Series/HDSP-316x Series/HDSP-515x Series/HDSP-516x Series Technical Data 10 p
- Agilent HDSP-315x Series Seven Segment Display Datasheet 10 p
- Agilent Technologies HDSP-315x Series 10 mm 13 mm Slim Font Seven Segment Displays Technical Data1 10 p
Questions answered in these manuals
What display sizes are available for the HDSP‑315x series?
The series is offered in 10 mm and 13 mm slim‑font displays.
From: Agilent HDSP-315x Series Seven Segment Display Datasheet
What temperature range can the HDSP‑315x devices operate in?
They operate from –20 °C up to +100 °C.
From: Agilent HDSP-315x Series Seven Segment Display Datasheet
What color options are available for the HDSP‑315x displays?
The series offers AlGaAs Red, High‑Efficiency Red, Yellow, and Green devices.
From: Agilent Technologies HDSP-315x Series 10 mm 13 mm Slim Font Seven Segment Displays Technical Data1
