Start here

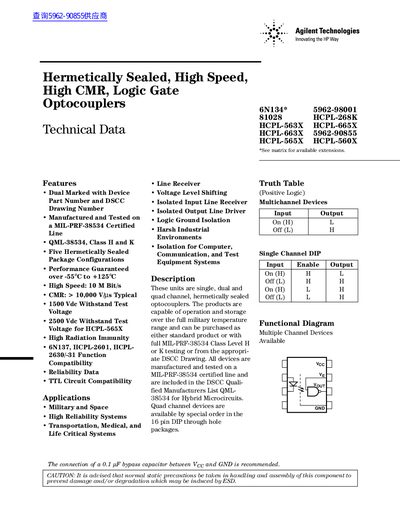

Agilent Technologies 6N134* 81028 HCPL-563X HCPL-663X HCPL-565X 5962-98001 HCPL-268K HCPL-665X 5962-90855 HCPL-560X handbook
This document provides technical specifications for a family of single, dual, and quad channel hermetically sealed optocouplers. The products are designed for operation over the full military temperature range (-55°C to +125°C) and feature high common mode transient immunity (CMR). They include various package configurations such as DIP through-hole, flat pack, and leadless ceramic chip carrier.
Read onlineAgilent 563x specifications
| Operating Temperature Range | -55°C to +125°C |
|---|---|
| High Speed Data Rate | 10 M Bit/s |
| Common Mode Rejection Ratio (CMR) | > 10,000 V/s Typical |
| Withstand Test Voltage (Standard) | 1500 Vdc |
| Withstand Test Voltage (HCPL-565X) | 2500 Vdc |
| Input Current, High Level (Ipy) | 10 to 20 mA |
All Agilent 563x documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature for these optocouplers?
The devices are capable of operation over a range of -55°C to +125°C.
What is the typical common mode rejection ratio?
The typical CMR is greater than 10,000 V/s.
What color options are available for the displays?
The displays are offered in HER (high‑efficiency red), green, yellow, and AlGaAs colors.
From: Agilent HDSP-301x/303x and HDSP-561x/563x Slim Font Seven Segment Displays Datasheet
What character sizes are offered?
Both 10 mm and 13 mm character sizes are available.
From: Agilent HDSP-301x/303x and HDSP-561x/563x Slim Font Seven Segment Displays Datasheet
