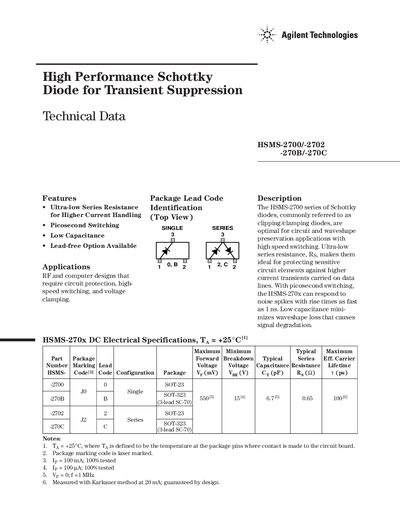

Agilent Technologies HSMS-2700/-2702/-270B/-270C handbook
The HSMS-2700 series Schottky diodes are clipping/clamping devices designed for high‑speed switching, low series resistance, and low capacitance, making them suitable for RF and computer circuit protection. The datasheet details electrical characteristics, absolute maximum ratings, and SPICE model parameters for the HSMS‑2700, 2702, 270B, and 270C variants.
Package options include SOT‑23 and SOT‑323 (SC‑70) formats, with detailed dimensions and tape handling information. Ordering data, lead‑free options, and contact details for technical support are also provided.
All Agilent HSMS-2702 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum forward current for the HSMS‑2700 diode?
The maximum forward current is 350 mA.
From: Agilent Technologies HSMS-2700/-2702/-270B/-270C handbook
What is the reverse voltage rating of the HSMS‑2700 series?
The reverse voltage (breakdown) rating is 15 V.
From: Agilent Technologies HSMS-2700/-2702/-270B/-270C handbook
