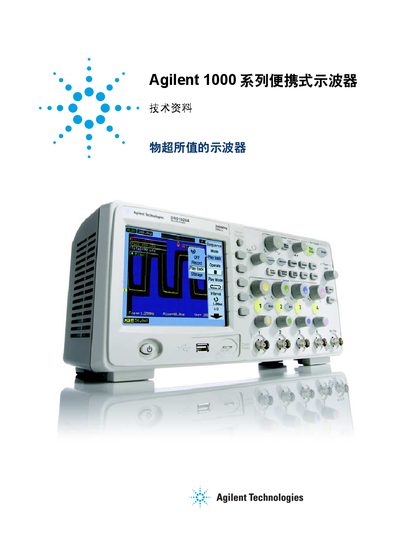

Agilent 1000 Series Oscilloscope Technical Data
Datasheet 11 pages · 867 KB · ZH
The Agilent 1000 series portable oscilloscopes combine high‑performance features of larger instruments with a lightweight, affordable design. They offer up to 2 GSa/s sampling, 20 kpts memory depth, and a bright 5.7‑inch color LCD for clear signal observation.
Key capabilities include 23 automatic measurements, sequence mode for waveform capture, advanced triggering, digital filtering, USB connectivity, and multilingual user interfaces (11 languages). The series is suited for R&D, education, manufacturing and service testing. This manual is written in Chinese.
Agilent 1000 series specifications
| Bandwidth (DSO1002A/DSO1004A) | 60 MHz |
|---|---|
| Bandwidth (DSO1012A/DSO1014A) | 100 MHz |
| Bandwidth (DSO1022A/DSO1024A) | 200 MHz |
| Real‑time sampling rate (half‑channel) | 2 GSa/s |
| Memory depth (half‑channel) | 20 kpts |
| Number of channels (DSO1002A/DSO1012A/DSO1022A) | 2 channels |
| Weight (net) | 3.03 kg |
| Power supply range | 100‑240 VAC, 50/60 Hz ±10% |
All Agilent 1000 series documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Product Leaflet 1
Questions answered in these manuals
What is the bandwidth of the DSO1014A model?
The DSO1014A provides a bandwidth of 100 MHz.
What is the net weight of the Agilent 1000 series oscilloscope?
The net weight is 3.03 kg.
