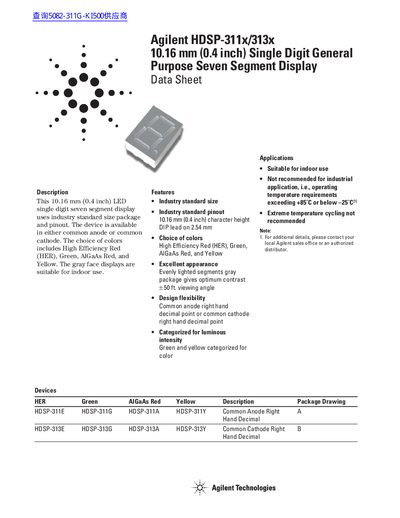

Agilent HDSP-311x/313x 10.16 mm Single Digit Seven Segment Display Data Sheet
The HDSP-311x/313x series are 10.16 mm (0.4 inch) single‑digit LED seven‑segment displays offered in common‑anode or common‑cathode configurations. They are available in several colors – High Efficiency Red (HER), Green, AlGaAs Red, and Yellow – and are intended for indoor use.
The document provides mechanical drawings, pinout information, electrical ratings (forward voltage, power dissipation, maximum forward current), and optical characteristics such as luminous intensity and viewing angle. It also lists part‑numbering conventions, bin options, and contact details for Agilent technical support.
Agilent HDSP-313X specifications
| Package height | 10.16 mm (0.4 inch) |
|---|---|
| Viewing angle | 50° |
| Operating temperature range | -35 °C to +85 °C |
| Power dissipation per segment | 65 mW (HER/Green), 30 mW (AlGaAs Red), 52 mW (Yellow) |
| Peak forward current per segment | 100 mA (HER/Green), 80 mA (AlGaAs Red/Yellow) |
| Forward voltage (typical, HER) | 2.05 V at 20 mA |
| Luminous intensity (typical, HER) | 1.49 cd at 5 mA |
| Pinout | Industry standard pinout |
