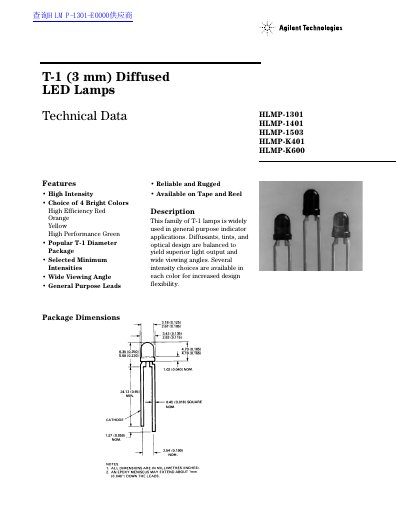

agilent technologies HLMP-1301 HLMP-1401 HLMP-1503 HLMP-K401 HLMP-K600 T-1 (3 mm) Diffused LED Lamps handbook
This document provides technical data for a family of T-1 (3 mm) diffused LED lamps manufactured by Agilent Technologies. The product line includes high-intensity options in Red, Orange, Yellow, Green, and Emerald Green colors, designed for general-purpose indicator applications.
The datasheet details the part numbering system, absolute maximum ratings, electrical characteristics such as forward voltage and luminous efficacy, and mechanical packaging options including bulk, tape & reel, and right-angle housings. It also includes selection guides based on luminous intensity and color binning.
Agilent HLMP-1503 specifications
| Package Type | T-1 (3 mm) |
|---|---|
| Available Colors | Red, Orange, Yellow, Green, Emerald Green |
| Peak Forward Current (Red/Orange/Green) | 90 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -55 to +100 °C |
All Agilent HLMP-1503 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package diameter of these T-1 diffused LED lamps?
The lamps have a standard T-1 diameter of 3 mm (0.115 inches).
What are the operating temperature ranges for red, orange, and green LEDs versus yellow LEDs?
Red, orange, and green lamps operate from -20°C to +100°C, while yellow lamps operate from -55°C to +100°C.
What is the maximum operating temperature range for red, orange, and yellow lamps?
These colors can operate in a temperature range from -55 to +100 degrees Celsius.
What is the peak wavelength for emerald green lamps?
The peak wavelength for emerald green is 558 nanometers.
