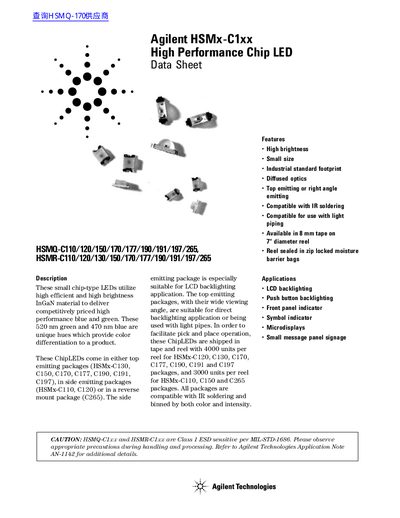

Agilent HSMx-C1xx High Performance Chip LED Data Sheet
This document provides a datasheet for the Agilent HSMx-C1xx series of small chip-type LEDs. These devices utilize high efficiency and high brightness InGaN material to deliver competitively priced high-performance blue (470 nm) and green (520 nm) light. The series is designed for applications such as LCD backlighting, push button illumination, front panel indicators, microdisplays, and small message panels.
Read onlineAgilent HSMX-C1XX specifications
| Wavelength (Green) | 520 nm |
|---|---|
| Wavelength (Blue) | 470 nm |
| DC Forward Current | 20 mA |
| Power Dissipation | 78 mW |
| Operating Temperature Range | -30 to +85 °C |
Source: Agilent HSMx-C1xx High Performance Chip LED Data Sheet
All Agilent HSMX-C1XX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the primary applications for these LEDs?
They are suitable for LCD backlighting, push button backlighting, front panel indicators, symbol indicators, microdisplays, and small message panel signage.
From: Agilent HSMx-C1xx High Performance Chip LED Data Sheet
Are these LEDs compatible with IR soldering?
Yes, all packages are compatible with IR soldering and are shipped in tape and reel.
From: Agilent HSMx-C1xx High Performance Chip LED Data Sheet
What is the typical forward current and power dissipation for the HSMx-C1xx LEDs?
The typical forward current is 20 mA and the power dissipation is 78 mW.
What package types are available for the HSMx-C1xx series?
The series is offered in top‑emitting packages (C130, C150, C170, C177, C190, C191, C197), side‑emitting packages (C110, C120), and a reverse‑mount package (C265).
