Start here

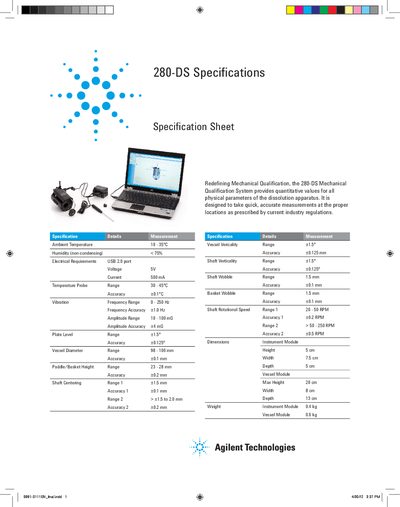

Agilent 280-DS Mechanical Qualification System Specification Sheet
The Agilent 280-DS Mechanical Qualification System provides quantitative values for all physical parameters of a dissolution apparatus. It is designed to take quick, accurate measurements at proper locations as prescribed by current industry regulations.
Key specifications include an ambient temperature range of 10 - 35°C and humidity below 75%. The system measures shaft verticality with an accuracy of +0.125 mm and basket wobble within a range of 1.5 mm.
Agilent 280-DS specifications
| Ambient Temperature Range | 10 - 35°C |
|---|---|
| Humidity Requirement | < 75% (non-condensing) |
| Shaft Verticality Range | +1.5° |
| Basket Wobble Range | 1.5 mm |
| Vessel Diameter Range | 98 - 106 mm |
Source: Agilent 280-DS Mechanical Qualification System Specification Sheet
All Agilent 280-DS documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What physical parameters does the Agilent 280-DS system measure?
The system provides quantitative values for all physical parameters of the dissolution apparatus.
From: Agilent 280-DS Mechanical Qualification System Specification Sheet
What is the operating temperature range for the instrument?
The ambient temperature must be between 10 and 35°C.
From: Agilent 280-DS Mechanical Qualification System Specification Sheet
What parameters does the Vessel Module measure?
The Vessel Module measures spindle speed, shaft and basket wobble, shaft and vessel verticality, vessel centering, and basket and paddle height.
From: Agilent 280-DS Mechanical Qualification System Brochure
Is the 280-DS compatible with non-Agilent equipment?
Yes, it is compatible with all open-head dissolution apparatus from any manufacturer, using snap-on spacers and adjustments.
From: Agilent 280-DS Mechanical Qualification System Brochure
