Key facts
- Brand
- Agilent
- Model
- 5082-761X
- Category
- Other Electronics
- Documents
- 6
- Languages
- EN
- Last added
- 2012-06-11
Start here

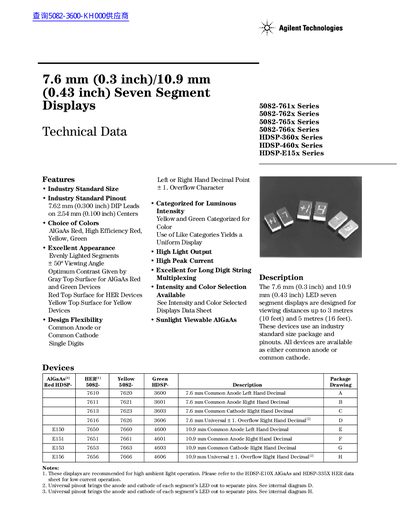

Agilent Technologies 5082-761x Series 5082-762x Series 5082-765x Series 5082-766x Series HDSP-360x Series HDSP-460x Series HDSP-E15x Series handbook
This document provides technical data for Agilent Technologies 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven segment displays. The devices are available in various colors including AlGaAs Red, High Efficiency Red, Yellow, and Green, and feature industry standard pinouts and sizes.
Read onlineAgilent 5082-761X specifications
| Viewing Distance | up to 3 metres (10 feet) and 5 metres (16 feet) |
|---|---|
| Storage Temperature Range | -55 to +100 °C |
| Peak Wavelength (AlGaAs Red) | 645 nm |
| Luminous Intensity (Yellow) | 21 to 620 mcd |
All Agilent 5082-761X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Agilent Technologies 5082-761x Series 5082-762x Series 5082-765x Series 5082-766x Series HDSP-360x Series HDSP-460x Series HDSP-E15x Series handbook 11 p
- Agilent 5082-761x Series 5082-762x Series 5082-765x Series 5082-766x Series HDSP-360x Series HDSP-460x Series HDSP-E15x Series handbook 11 p
- Agilent 5082-761x Series Seven Segment Display Datasheet 12 p
- Agilent 5082-761x/5082-762x/5082-765x/5082-766x/HDSP-360x/HDSP-460x/HDSP-E15x Series Handbook 11 p
- Agilent Technologies 5082-761x Series 7.6 mm (0.3 inch)/10.9 mm (0.43 inch) Seven Segment Displays Technical Data 11 p
- Agilent Technologies 5082-761X Series 7.6 mm (0.3 inch)/10.9 mm (0.43 inch) Seven Segment Displays Technical Data1 8 p
Questions answered in these manuals
What are the available colors for these displays?
The displays are available in AlGaAs Red, High Efficiency Red, Yellow, and Green.
Are these displays suitable for high ambient light?
Yes, they are recommended for high ambient light operation.
What colors are available for these displays?
The devices are available in AlGaAs Red, High Efficiency Red, Yellow, and Green.
Are common anode or cathode configurations supported?
All devices are available as either common anode or common cathode.
What is the operating temperature range for the 5082‑761x displays?
The displays are rated for operation from –20 °C to +100 °C.
From: Agilent 5082-761x Series Seven Segment Display Datasheet
What forward voltage does each segment require?
Typical forward voltage is 2.0 V per segment, with a maximum of 3.0 V.
From: Agilent 5082-761x Series Seven Segment Display Datasheet
