Start here

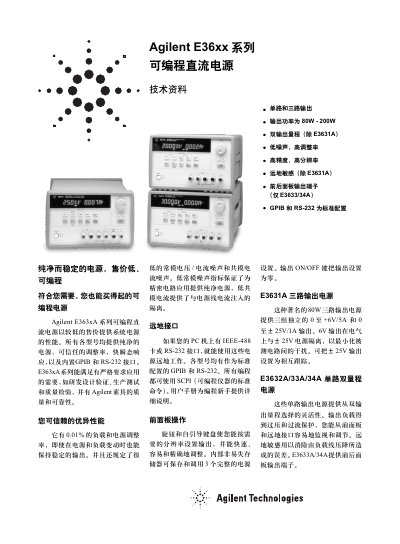

Agilent E36xx Programmable DC Power Supply User Manual
This manual describes the Agilent E36xx series of programmable DC power supplies, covering single‑ and three‑output configurations with power ratings from 80 W to 200 W. It includes details on front‑panel operation, remote (ground‑sensitive) interfaces, and SCPI‑based programming via GPIB or RS‑232.
Key features include low noise, high regulation, high resolution, and built‑in protection. Technical specifications such as voltage and current ranges, load regulation, ripple and noise, and transient response are listed for each model, along with mechanical dimensions, input voltage options, and warranty information. This manual is written in Chinese.
Agilent E36xx specifications
| Power Rating (E3610A-E3612A) | 30-watt |
|---|---|
| Power Rating (E3614A-E3617A) | 60-watt |
| Load Regulation | < 0.01% |
| Line Regulation | < 0.01% |
| Isolation | 240 Vdc |
| Warranty | One year |
Source: Agilent E36XXA Series Non-Programmable DC Power Supplies Data Sheet
All Agilent E36xx documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the power rating of the E3610A model?
The E3610A is a 30-watt bench supply designed for general laboratory use.
From: Agilent E36XXA Series Non-Programmable DC Power Supplies Data Sheet
What is the warranty period for the E3600 series?
The warranty is one year for E3600 series power supplies.
From: Agilent E36XXA Series Non-Programmable DC Power Supplies Data Sheet
What communication interfaces are standard on the E36xx series?
GPIB and RS‑232 are provided as standard configurations.
From: Agilent E36xx Programmable DC Power Supply User Manual
What is the transient response time for the power supply to settle within 15 mV?
The output settles within 15 mV in less than 50 µs.
From: Agilent E36xx Programmable DC Power Supply User Manual
