Start here

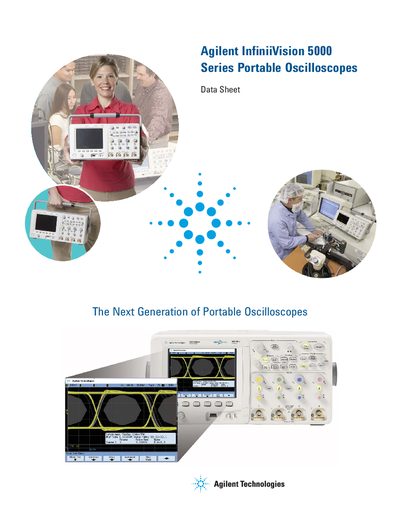

Agilent InfiniiVision 5000 Series Portable Oscilloscope Data Sheet
The InfiniiVision 5000 Series portable oscilloscopes combine Agilent's MegaZoom III deep memory, fast update rates, and high‑definition XGA display in a compact, battery‑operated form factor. Available with 100 MHz, 300 MHz, or 500 MHz bandwidth, they offer 2 or 4 input channels, up to 12‑bit vertical resolution, and real‑time update rates of up to 100,000 waveforms per second.
A wide range of software options and accessories are supported, including CAN/LIN, I²C/SPI, FlexRay, MIL‑STD‑1553, and high‑voltage probes. The scopes feature USB, LAN, GPIB, and LXI connectivity, as well as an embedded help system in 11 languages and optional secure‑environment mode for compliance with NISPOM requirements.
Agilent 5000 Series specifications
| Bandwidth | 100 MHz, 300 MHz, 500 MHz |
|---|---|
| Channels | 2 or 4 |
| Acquisition Memory | 8 Mpts |
| Real‑time Update Rate | Up to 100,000 waveforms per second |
| Display | XGA 1024 × 768, 256 intensity levels |
| Vertical Resolution | Up to 12 bits |
Source: Agilent InfiniiVision 5000 Series Portable Oscilloscope Data Sheet
All Agilent 5000 Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What bandwidth options are available for the InfiniiVision 5000 Series?
The series is offered with 100 MHz, 300 MHz, and 500 MHz bandwidths.
From: Agilent InfiniiVision 5000 Series Portable Oscilloscope Data Sheet
How many input channels can the 5000 Series scopes have?
Each model can be configured with either 2 or 4 channels.
From: Agilent InfiniiVision 5000 Series Portable Oscilloscope Data Sheet
What bandwidth options are available for the Agilent 5000 series portable oscilloscope?
The oscilloscope is offered with bandwidths of 100 MHz, 300 MHz, or 500 MHz.
From: Agilent 5000 Series Portable Oscilloscope Technical Data
How many channels can the 5000 series models have?
Models are available with either 2 or 4 input channels.
From: Agilent 5000 Series Portable Oscilloscope Technical Data
