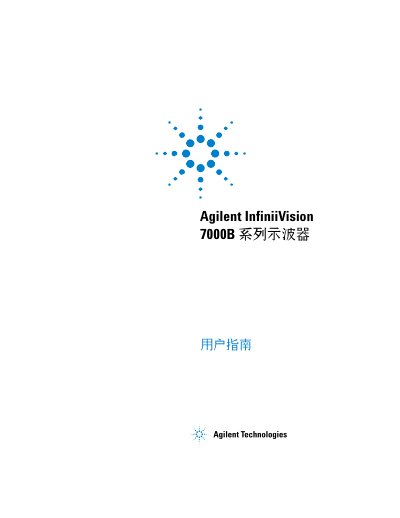

Agilent InfiniiVision 7000B Series Oscilloscope User Guide
This guide provides detailed instructions for using the Agilent InfiniiVision 7000B series oscilloscopes, including hardware overview, safety notices, and software version 6.0 compatibility. It explains the instrument’s MegaZoom III technology, display specifications, and available options such as USB, LAN, and various trigger modules.
The manual is organized into sections covering getting started, probing, waveform display, trigger configuration, measurement functions, data acquisition, web interface, and serial decoding for protocols like CAN, LIN, I2C, SPI, and more. Service and calibration procedures are also included. This manual is written in Chinese.
Agilent InfiniiVision 7000B series specifications
| Bandwidth options | 100 MHz, 350 MHz, 500 MHz, 1 GHz |
|---|---|
| Maximum sampling rate | 2 GSa/s (100 MHz/350 MHz) or 4 GSa/s (500 MHz/1 GHz) |
| Display size | 12.1‑inch XGA |
| Analog channels | 2‑channel or 4‑channel DSO models |
| Logic channels (MSO) | 16‑channel mixed‑signal option |
Source: Agilent InfiniiVision 7000B Series Oscilloscope User Guide
