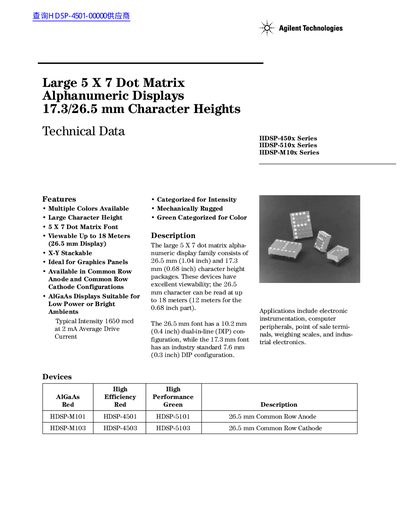

Agilent Technologies HDSP-450x Series/HDSP-510x Series/HDSP-M10x Series handbook
This document provides technical specifications for the Agilent HDSP-450x, HDSP-510x, and HDSP-M10x series of large 5 x 7 dot matrix alphanumeric displays. These devices utilize AlGaAs light-emitting diodes (LEDs) with character heights of 26.5 mm or 17.3 mm.
Read onlineAgilent HDSP-450X specifications
| Character Height | 26.5 mm (1.04 inch) and 17.3 mm (0.68 inch) |
|---|---|
| Dot Matrix Font | 5 x 7 Dot Matrix |
| Viewable Distance (26.5 mm) | Up to 18 meters |
| Operating Temperature Range (HDSP-M10x/450x) | -20°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Peak Wavelength (Red HDSP-M10x) | 637 nm |
| Forward Voltage (Red, Ip=10mA) | 2.1 V Max |
Source: Agilent Technologies HDSP-450x Series/HDSP-510x Series/HDSP-M10x Series handbook
All Agilent HDSP-450X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum viewing distance for the 26.5 mm character height display?
The 26.5 mm character can be read at up to 18 meters.
From: Agilent Technologies HDSP-450x Series/HDSP-510x Series/HDSP-M10x Series handbook
What is the typical luminous intensity of an AlGaAs Red display driven at 2 mA average?
The typical intensity is 1650 mcd at 2 mA average drive.
From: Agilent Technologies HDSP-450x Series/HDSP-510x Series/HDSP-M10x Series handbook
How far can the 26.5 mm HDSP display be read?
The 26.5 mm display can be read up to 18 meters.
From: Agilent HDSP-450x Series Alphanumeric Display Datasheet
What is the maximum peak forward current per dot for the red HDSP displays?
The maximum peak forward current per dot is 125 mA.
From: Agilent HDSP-450x Series Alphanumeric Display Datasheet
