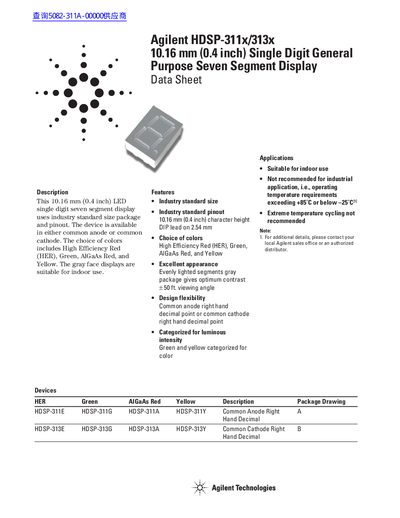

This data sheet introduces the features and characteristics of Agilent HDSP-311x/313x 10.16 mm (0.4 inch) Single Digit General Purpose Seven Segment Display. This product is a 10.16 mm (0.4 inch) LED single digit seven segment display that uses an industry standard size package and pinout. The device is available in either common anode or common cathode. The choice of colors includes High Efficiency Red (HER), Green, AlGaAs Red, and Yellow. The gray face displays are suitable for indoor use.
The HDSP-311x/313x series are 10.16 mm (0.4 inch) single‑digit LED seven‑segment displays offered in common anode or common cathode configurations. They are suitable for indoor use and come in High Efficiency Red, Green, AlGaAs Red, and Yellow colors.
Key specifications include a 50° viewing angle, operating temperature range of –35 °C to +85 °C, forward voltage of 2.05‑2.40 V (HER) at 20 mA, and a peak forward current of 100 mA per segment. The devices use an industry‑standard 2.54 mm DIP package with standard pinout.
| Package character height | 10.16 mm (0.4 inch) |
|---|---|
| Viewing angle | 50° |
| Operating temperature range | -35 °C to +85 °C |
| Forward voltage (HER) | 2.05‑2.40 V at 20 mA |
| Luminous intensity (HER) | 1.49‑3.20 cd at 5 mA |
| Package lead spacing | 2.54 mm (DIP) |
The device is rated for –35 °C to +85 °C operating temperature.
It uses an industry‑standard 2.54 mm DIP package with a standard pinout.
