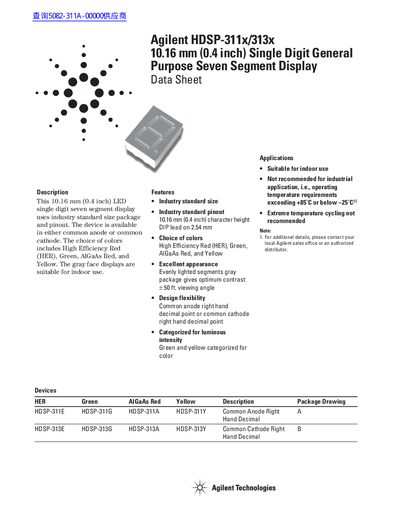

This document introduces the features and characteristics of the Agilent HDSP-311x/313x 10.16 mm (0.4 inch) Single Digit General Purpose Seven Segment Display.
The HDSP‑311x/313x series are 10.16 mm (0.4 inch) single‑digit LED seven‑segment displays offered in common‑anode or common‑cathode configurations. They are available in several colors (High Efficiency Red, Green, AlGaAs Red, Yellow) and are intended for indoor use.
This datasheet provides the part‑numbering system, mechanical drawing dimensions, pin assignments, absolute maximum ratings, electrical/optical characteristics, intensity and color bin limits, and contact information for Agilent Technologies.
| Package height (character) | 10.16 mm (0.4 inch) |
|---|---|
| Pin pitch (DIP lead) | 2.54 mm |
| Operating temperature range | -35 °C to +85 °C |
| Power dissipation per segment (HER) | 65 mW |
| Forward voltage (HER typical) | 2.40 V |
| Luminous intensity per segment (HER typical) | 1.49 cd at 5 mA |
The devices operate from –35 °C up to +85 °C.
Pins 4, 5, 6, and 12 are not provided.
Typical luminous intensity per segment is 1.49 cd at a forward current of 5 mA.
