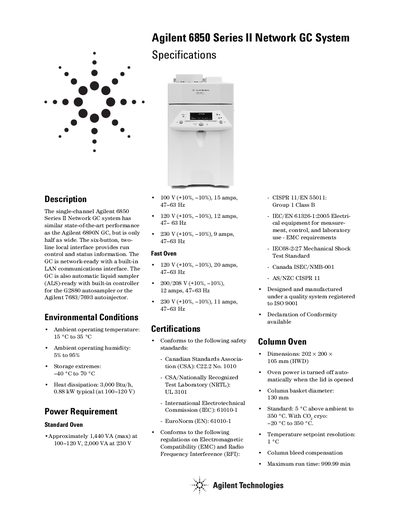

Agilent 6850 Series II Network GC System Specifications
The Agilent 6850 Series II Network GC system is a single-channel instrument designed with similar performance to the Agilent 6890N but in half the width. It features a six-button local interface for run control and status, along with built-in LAN communications and controller readiness for the G2880 autosampler or Agilent 7683/7693 autoinjector.
The system supports various inlet types including split/splitless capillary, purged packed injection port (PPIP), temperature-programmable vaporizer (PTV), and cool-on-column (PCOC). It is equipped with detectors such as Flame Ionization Detector (FID), Thermal Conductivity Detector (TCD), FPD, and Micro-ECD. The unit includes Electronic Pneumatics Control (EPC) for precise pressure and flow management.
Agilent 6850 Series II Network GC System specifications
| Width (Standard) | 283 mm |
|---|---|
| Column Oven Dimensions | 202 x 200 x 105 mm (HWD) |
| Column Basket Diameter | 130 mm |
| Temperature Setpoint Resolution | 1°C |
| Maximum Run Time | 999.99 min |
| TCD Minimum Detectable | <400 pg propane/mL helium carrier |
| Micro-ECD MDL | <0.008 pg/s lindane |
Source: Agilent 6850 Series II Network GC System Specifications
All Agilent 6850 Series II Network GC System documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the ambient operating temperature range?
The ambient operating temperature ranges from 15 °C to 35 °C.
From: Agilent 6850 Series II Network GC System Specifications
Is the system ready for automatic liquid sampling?
Yes, it is ALS-ready with a built-in controller for the G2880 autosampler or Agilent 7683/7693 autoinjector.
From: Agilent 6850 Series II Network GC System Specifications
What are the part numbers for the septumless and septum PTV inlet kits?
The septumless kit is G3345B and the septum kit is G3346B.
From: Agilent 6850 Series II Network GC System Installing a PTV Inlet
What tools are required to install a PTV inlet?
A TT-20 Torx® screwdriver and a 7/16-inch open end wrench are required.
From: Agilent 6850 Series II Network GC System Installing a PTV Inlet
