Key facts
- Brand
- Agilent
- Model
- 4200 FlexScan
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-04
Start here

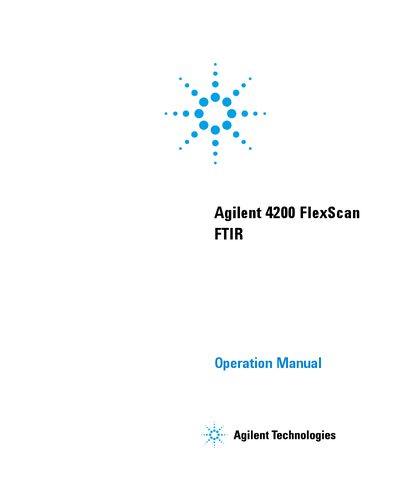

Agilent 4200 FlexScan FTIR Operation Manual
The Agilent 4200 FlexScan is a handheld, battery-operated Fourier transform infrared (FTIR) spectrometer designed for quantitative and qualitative analysis of solid and liquid samples in field environments. It features a rugged, weather-resistant enclosure and includes an internal lithium-ion battery providing up to four hours of operation.
Read onlineAgilent 4200 FlexScan specifications
| Weight (Optics module) | 1.45 kg (3.2 lb) |
|---|---|
| Dimensions (Optics module) | 14 x 10.8 x 8.3 cm |
| Frequency range | 4000-650 cm-1 |
| Interferometer type | Michelson interferometer |
| Beam splitter material | ZnSe |
| Detector type | Temperature-stabilized DIGS |
All Agilent 4200 FlexScan documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What sample interfaces are available for the 4200 FlexScan?
The system offers Diffuse Reflectance, External Reflectance, Grazing Angle, and ATR.
How long does the battery last?
The optics module battery provides an estimated 3.2 hours of run time.
What is the specific goal of using the Agilent 4100 ExoScan in this study?
The goal was to determine if the handheld FTIR can detect changes in the molecular structure induced by increasing exposure temperatures and correlate those spectral changes to physical strength.
From: Agilent 4100/4200 FTIR Composite Thermal Damage Correlation Application Note
How long did each analysis take when using the 4100 ExoScan?
Each analysis took approximately 30 seconds.
From: Agilent 4100/4200 FTIR Composite Thermal Damage Correlation Application Note
What is the operating temperature range for the Agilent 4200 FlexScan?
The instrument can be safely used in temperatures ranging from 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit).
How long does the internal battery last?
The system comes standard with an internal battery for operation of up to 4 hours.
