Key facts
- Brand
- STMicroelectronics
- Model
- L99PM62GXP
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-08
Start here

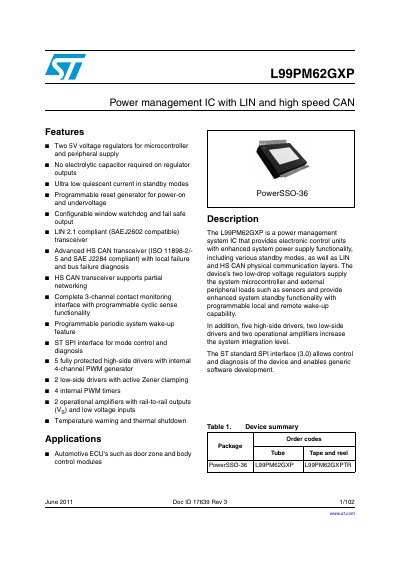

STMicroelectronics L99PM62GXP Power Management IC Datasheet
The L99PM62GXP is a power management system IC designed for automotive electronic control units (ECUs). It integrates two low-drop voltage regulators for microcontroller and peripheral supply, eliminating the need for electrolytic capacitors on regulator outputs. The device supports enhanced system standby functionality with programmable local and remote wake-up capabilities.
Read onlineSTMicroelectronics L99PM62GXP specifications
| Package | PowerSSO-36 |
|---|---|
| LIN compliance | LIN 2.1 compliant |
| CAN compliance | ISO 11898-2/-5 and SAE J2284 |
| Voltage regulators | Two 5V voltage regulators |
| High-side drivers | 5 fully protected high-side drivers |
| Low-side drivers | 2 low-side drivers |
| Operational amplifiers | 2 operational amplifiers |
Source: STMicroelectronics L99PM62GXP Power Management IC Datasheet
All STMicroelectronics L99PM62GXP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the package type for the L99PM62GXP?
The device is available in a PowerSSO-36 package.
From: STMicroelectronics L99PM62GXP Power Management IC Datasheet
Does the L99PM62GXP require electrolytic capacitors?
No, it does not require electrolytic capacitors on regulator outputs.
From: STMicroelectronics L99PM62GXP Power Management IC Datasheet
What is the recommended output voltage for the example circuits?
The example circuits are designed to provide an output voltage of 5.0 V.
From: STMicroelectronics AN3399 L99PM62GXP External Voltage Regulation Application Note
Which transistor is used for current limitation in the PNP circuit?
Transistor T2, model BC857, is used together with resistor R6 to limit output current.
From: STMicroelectronics AN3399 L99PM62GXP External Voltage Regulation Application Note
